What is a PMSM Motor?
A Permanent Magnet Synchronous Motor (PMSM) is an advanced electric motor that utilizes permanent magnets embedded in its rotor structure. Unlike induction motors, PMSMs operate in perfect synchronization with the alternating current supplied to their stator windings, eliminating rotor slip and improving efficiency.
PMSMs combine the high efficiency of synchronous motors with the power density of permanent magnet technology, resulting in a motor that delivers exceptional performance across a wide speed range. This makes them particularly well-suited for electric vehicle applications where efficiency, compact size, and responsive power delivery are critical requirements.
The design of PMSMs allows for precise speed control and high torque output at low speeds, characteristics that are essential for automotive propulsion systems requiring both efficient city driving and capable highway performance.
Applications in Electric Vehicles
PMSM motors have become the preferred choice for modern electric vehicles, offering significant advantages over alternative motor technologies. Their unique combination of efficiency, power density, and controllability makes them ideal for both new electric vehicles and internal combustion engine (ICE) vehicle conversions.
Usage in New Electric Vehicles
In modern electric vehicles, PMSMs serve as the primary propulsion system, converting electrical energy from the battery pack into mechanical motion with minimal energy loss. Automotive manufacturers utilize PMSMs for their ability to provide instant torque, smooth acceleration, and efficient operation across all driving conditions.
Applications in Vehicle Conversions
For enthusiasts and professionals converting traditional ICE vehicles to electric propulsion, PMSMs offer distinct advantages that simplify the conversion process while delivering superior performance:
- Compact design that fits easily into existing engine bays
- High power-to-weight ratio reducing overall vehicle weight
- Elimination of complex transmission requirements due to wide torque range
- Compatibility with standard EV controllers and battery systems
- Easier integration with existing vehicle drivetrains
Key Advantages of PMSMs
- Superior Efficiency: Typically 90-96% efficient across various load conditions, maximizing driving range
- High Torque Density: Delivers more torque per kilogram than alternative motor types
- Regenerative Capability: Efficiently recovers energy during braking, extending battery life
- Low Maintenance: Brushless design eliminates wear components requiring regular replacement
- Precise Control: Enables smooth acceleration and deceleration profiles for enhanced driving comfort
- Wide Operating Range: Maintains efficiency at both low and high speeds
Common PMSM Motors for Electric Vehicles
PMSM motors for electric vehicles are available in various power ratings to suit different vehicle types and conversion requirements, from small cars to light commercial vehicles.
15kW 144V Front Drive PMSM Kit
Compact front-wheel drive solution ideal for small to medium-sized vehicles and urban commuting applications.
View Details

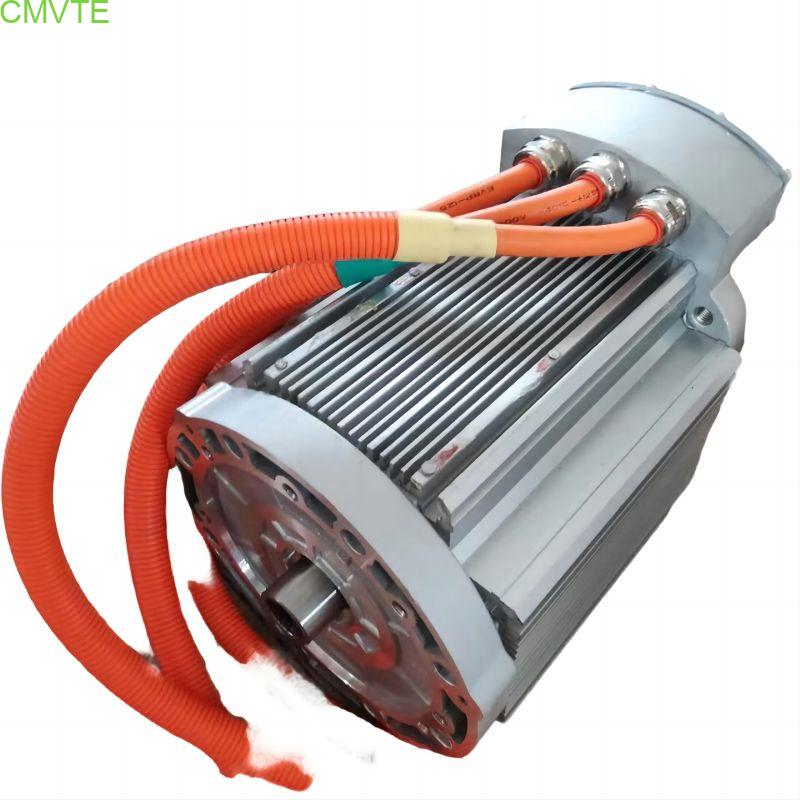

18kW 144V RWD PMSM Kit
Rear-wheel drive configuration offering enhanced handling characteristics for improved driving experience.
View Details
23kW 144V PMSM System
Versatile mid-range system suitable for a wide variety of vehicle types and applications.
View Details
50kW 360V Truck PMSM Kit
Heavy-duty solution including motor, controller and gear box for pickup trucks and commercial vehicles.
View Details
30kW PMSM Motor System
High-performance system for larger passenger vehicles requiring increased power output.
View Details
70kW 360V Liquid-Cooled PMSM
Premium high-power system with liquid cooling for demanding applications and larger vehicles.
View DetailsSelection and Maintenance Guidelines
Selecting the Right PMSM Motor for Conversion
Choosing the appropriate PMSM motor for your electric vehicle conversion requires careful consideration of several factors to ensure optimal performance and compatibility:
- Power Requirements: Calculate based on vehicle weight (typically 1kW per 100kg for basic use, higher for performance)
- Voltage Compatibility: Match motor voltage rating with your battery system configuration
- Physical Dimensions: Ensure proper fit within available engine bay space
- Torque Characteristics: Prioritize high low-speed torque for better acceleration and hill climbing
- Cooling Requirements: Consider ambient temperatures and select appropriate cooling systems
- Controller Compatibility: Ensure proper matching with motor controller capabilities
- Mounting Considerations: Evaluate compatibility with existing drivetrain components
Maintenance and Lifespan
While PMSM motors are relatively low-maintenance compared to internal combustion engines, proper care is essential to maximize performance and longevity:
Maintenance Best Practices
- Regular inspection of cooling systems to ensure proper operation
- Periodic checks of electrical connections for corrosion or looseness
- Calibration of position sensors as recommended by manufacturer
- Software updates for motor controllers when available
- Protection from excessive moisture and contaminants
- Monitoring of operating temperatures during use
Expected Lifespan
With proper maintenance, PMSM motors typically offer a service life of 150,000 to 300,000 kilometers in automotive applications. The permanent magnet technology ensures consistent performance over time, with minimal degradation. Most manufacturers provide warranties ranging from 5 to 10 years, reflecting the durability of PMSM technology.
Frequently Asked Questions
PMSMs use permanent magnets in the rotor, eliminating the need for rotor current and reducing energy loss. This results in higher efficiency (typically 5-10% better) and better performance at low speeds compared to induction motors, though they generally have a higher initial cost.
Most vehicles can be converted, but success depends on available space, weight distribution, and structural considerations. Smaller, lighter vehicles are generally easier to convert and provide better range performance with PMSM systems.
144V systems are common for smaller vehicles and lower power requirements, while 360V systems are better for higher power applications and larger vehicles. The choice depends on your power needs and range requirements.
Extreme temperatures can impact performance. High temperatures may cause temporary power reduction to prevent damage, while cold temperatures can slightly reduce efficiency until the motor warms up. Proper cooling systems mitigate these effects.
Yes, PMSMs require specialized controllers that manage the three-phase AC power and synchronize with the rotor position. These controllers are typically included in conversion kits designed for specific motor models.
