Revolutionary Diesel-to-Electric Conversion System for Heavy-Duty Trucks
Overview:
Transform your conventional 30-ton heavy truck into an efficient, eco-friendly electric vehicle with our complete diesel-to-electric conversion kit. This comprehensive solution replaces the entire combustion engine system with a high-performance electric powertrain specifically designed for heavy-duty applications.

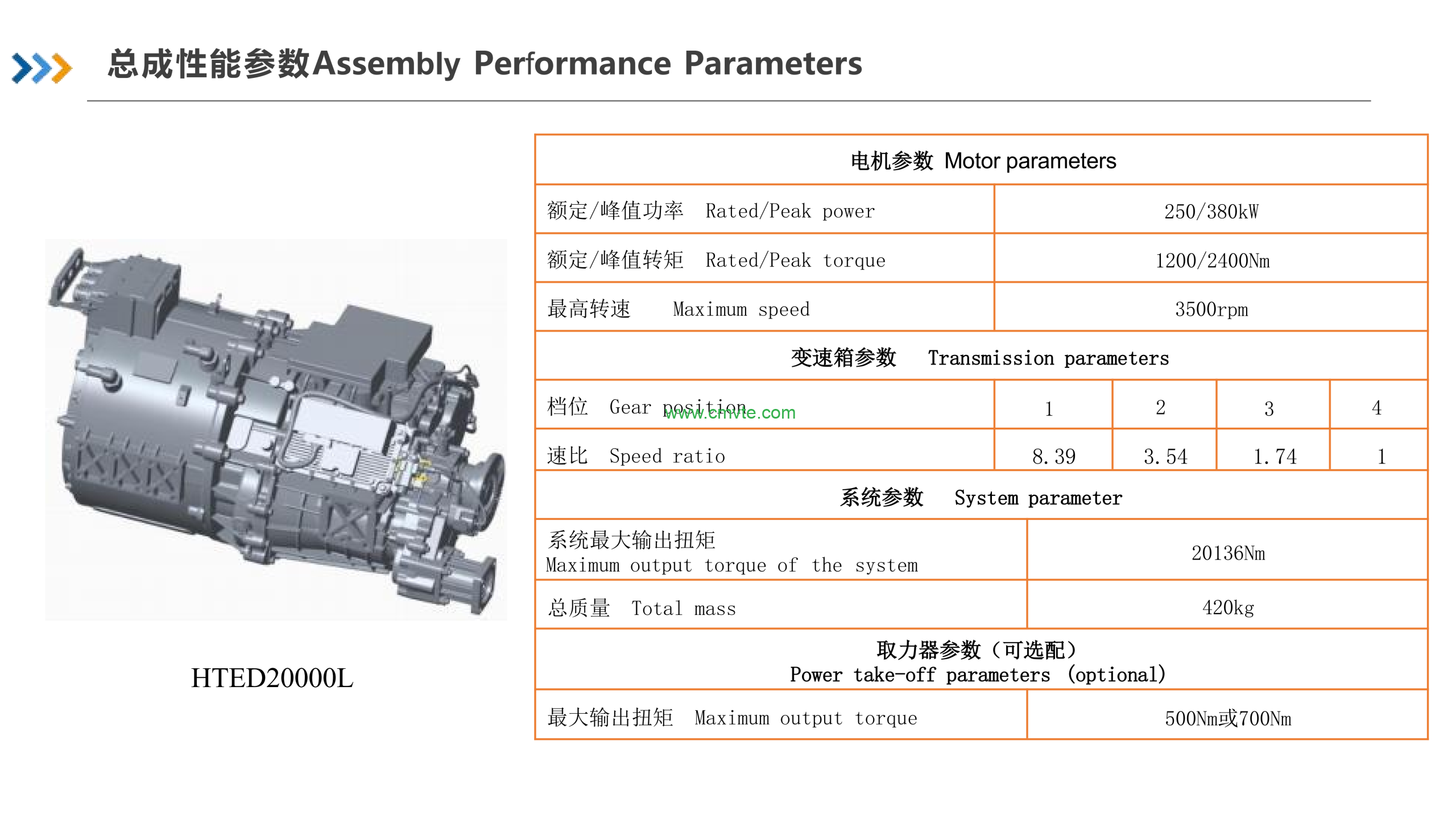

Key Specifications:
-
Electric Motor: 250KW rated power (380KW peak)
-
Torque Capacity: 1200NM rated (2400NM peak)
-
Maximum Speed: 3500 RPM
-
Transmission: 4-speed AMT gearbox
-
Gear Ratios: 8.39, 3.54, 1.74, 1
-
System Output: Maximum torque 20,136 NM
-
Voltage Platform: 400V-750V DC

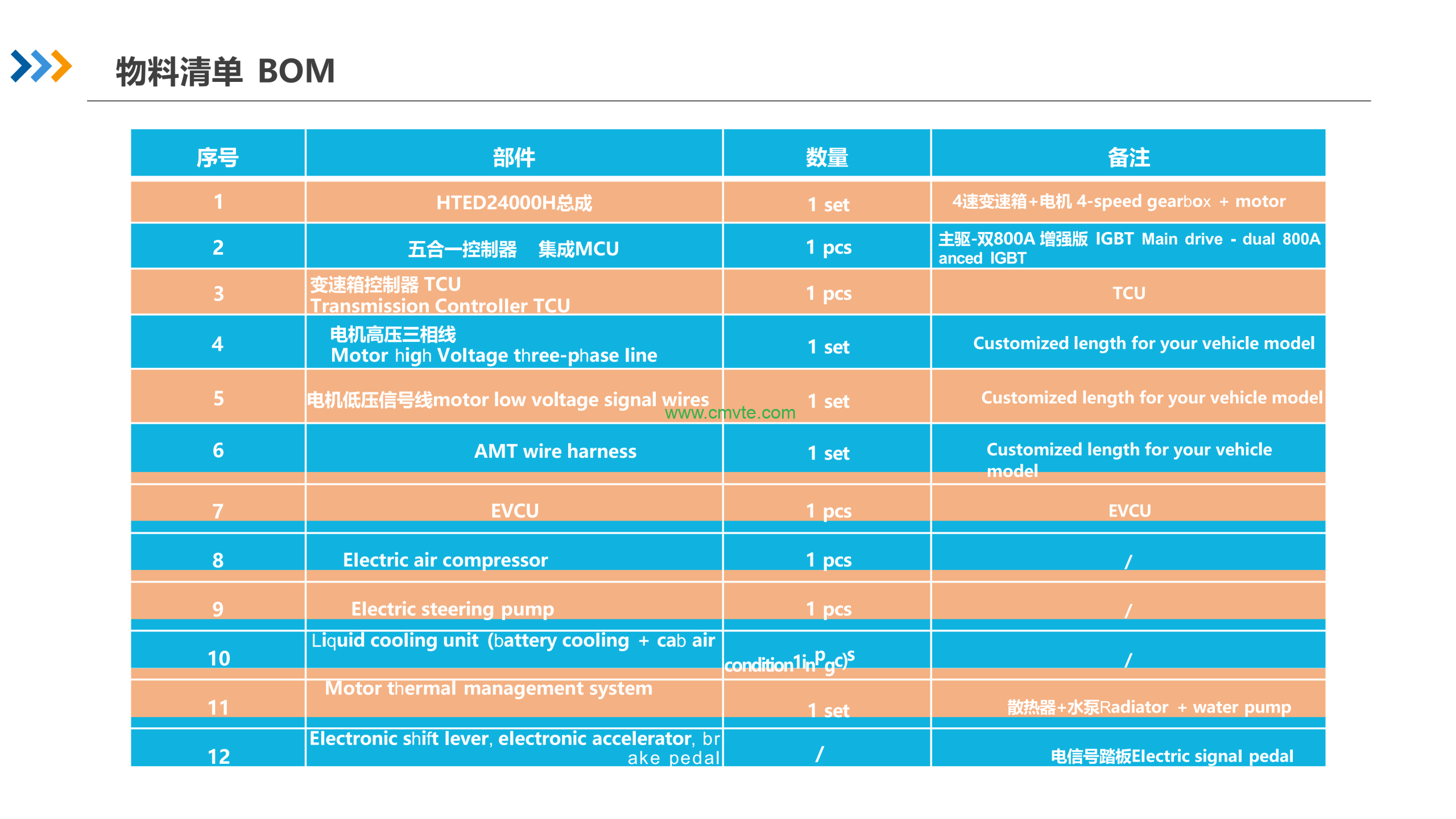

Complete System Components:
-
Power System: High-torque electric motor + 4-speed transmission
-
Control Units: Motor controller, transmission controller, vehicle control unit
-
Battery System: High-voltage battery pack with thermal management
-

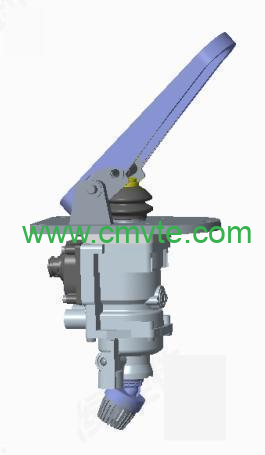

Driving Interface: Gear selection panel, instrument cluster, accelerator/brake pedals
-

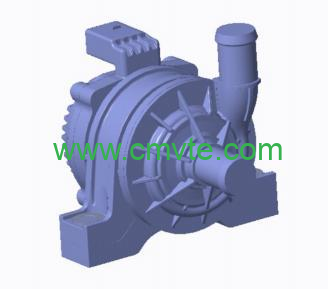

Ancillary Systems: Electric AC compressor, power steering pump, brake air compressor
-
Cooling System: Advanced liquid cooling and thermal management
Performance Benefits:
-
Superior Torque: Delivers up to 20,136 NM system output torque
-
Wide Voltage Range: Compatible with 400V-750V battery systems
-
Optimal Gearing: 4-speed transmission ensures efficient power delivery
-
Heavy-Duty Capability: Specifically engineered for 30-50 ton trucks
-
Enhanced Efficiency: Eliminates diesel consumption and reduces maintenance
Application:
Ideal for converting 30-50 ton heavy trucks, including cargo trucks, dump trucks, and other commercial vehicles seeking to transition to zero-emission electric operation while maintaining robust performance and reliability.
Package Includes all necessary components for complete conversion:
Electric motor, transmission, controllers, battery system, thermal management, and all required accessories for a professional-grade installation.
