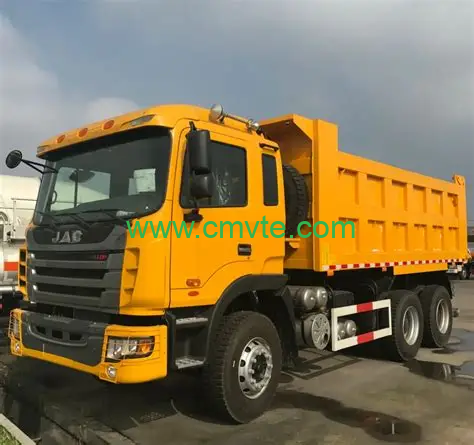

Suitable Vehicle Type : 50-70T composite trailer or dump truck
This advanced Diesel-to-Electric Conversion Kit is engineered for heavy-duty 50-70 ton composite trailers and dump trucks. The core of the system is a high-performance 280KW Permanent Magnet Synchronous Motor (PMSM), delivering a peak power of 420KW for exceptional torque and hill-climbing capability.

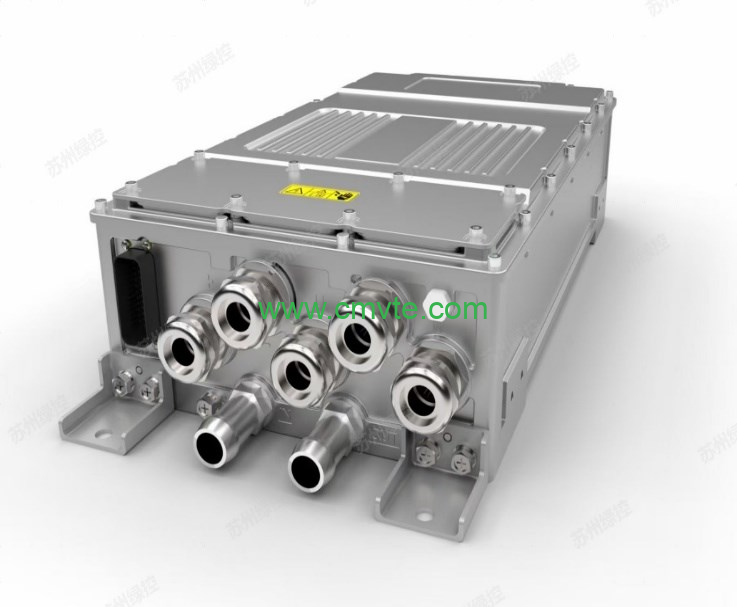

A key feature of this kit is the seamlessly integrated gearbox system. The gearbox is intelligently controlled by a dedicated Transmission Control Unit (TCU), which communicates in real-time with the vehicle’s main Vehicle Control Unit (VCU). This integrated control system allows for smooth and automatic gear shifting, optimizing power delivery for any driving condition—whether under heavy load, on steep grades, or in highway cruising. This ensures maximum efficiency, enhanced drivability, and reduced wear on the drivetrain.
This all-in-one kit provides a complete and robust solution for converting your most demanding commercial vehicles to zero-emission electric operation.
| 电机参数
Motor parameter |
|||||
| 电机型式
Motor Type |
永磁同步电机
PMSM |
||||
| 额定/峰值功率
Rated/Peak Power |
280/420kW | ||||
| 额定/峰值转矩
Rated/Peak Torque |
1500/2600Nm | ||||
| 最高转速
Max. Speed |
3500rpm | ||||
| 参考电池电压
Reference battery voltage |
630VDC | ||||
| 变速箱参数
Transmission parameter |
|||||
| 挡位
Gear |
1 | 2 | 3 | ||
| 速比
Ratio |
8.39 | 3.54 | 1.74 | ||
| 系统参数
System parameter |
|||||
| 最大输出扭矩
Max. output Torque |
2600*8.39=21814Nm | ||||
| 最大输出转速
Max. output Speed |
3500rpm | ||||
| 总质量
Total Mass |
450kg
|
||||
