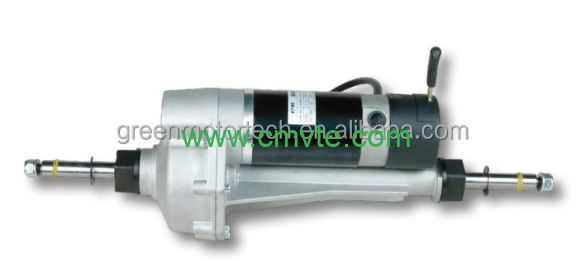

Introducing the 500W Permanent Magnet Brushed Electric Transaxle, It is crafted with a DC permanent magnet brushed motor and differential, a combination that creates power, efficiency, and reliability.
Usage: small scooters for cleaning, warehouse, sweeping, wheel chair, golf trolley, mobillity scooters etc.
Why Choose this model
- Quiet Operation: The transaxle operates at a low noise level of ≤65dB, ensuring a disturbance-free environment.
- High Precision Gear: Crafted from alloy steel, our hard tooth surface gear guarantees a smoother and more efficient operation.
- Extended Battery Life: With a focus on energy conservation, the transaxle promises to conserve electricity, thus ensuring a longer battery life.
- Electromagnetic Brake: Our advanced electromagnetic brake ensures the highest level of safety, providing instant braking when the controller is released.
- Customizable Solutions: Understanding that every user has unique needs, we offer the option to customize the transaxle to your specific requirements.
The transaxle boasts a small turning radius and high sensitivity, owing to its innovative design that comprises of a DC permanent magnet brushed motor and differential. Delivering high torque output through its deceleration method, this transaxle series proves to be an invaluable asset in multiple applications such as small scrubbers, power trolleys, and 2-seat scooters.

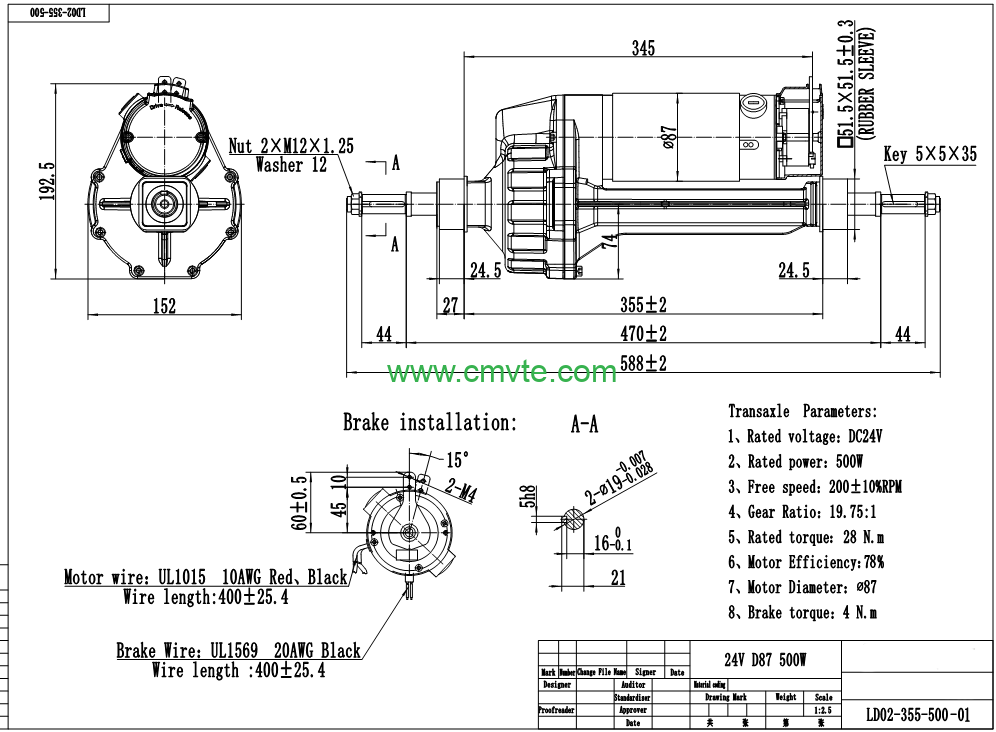

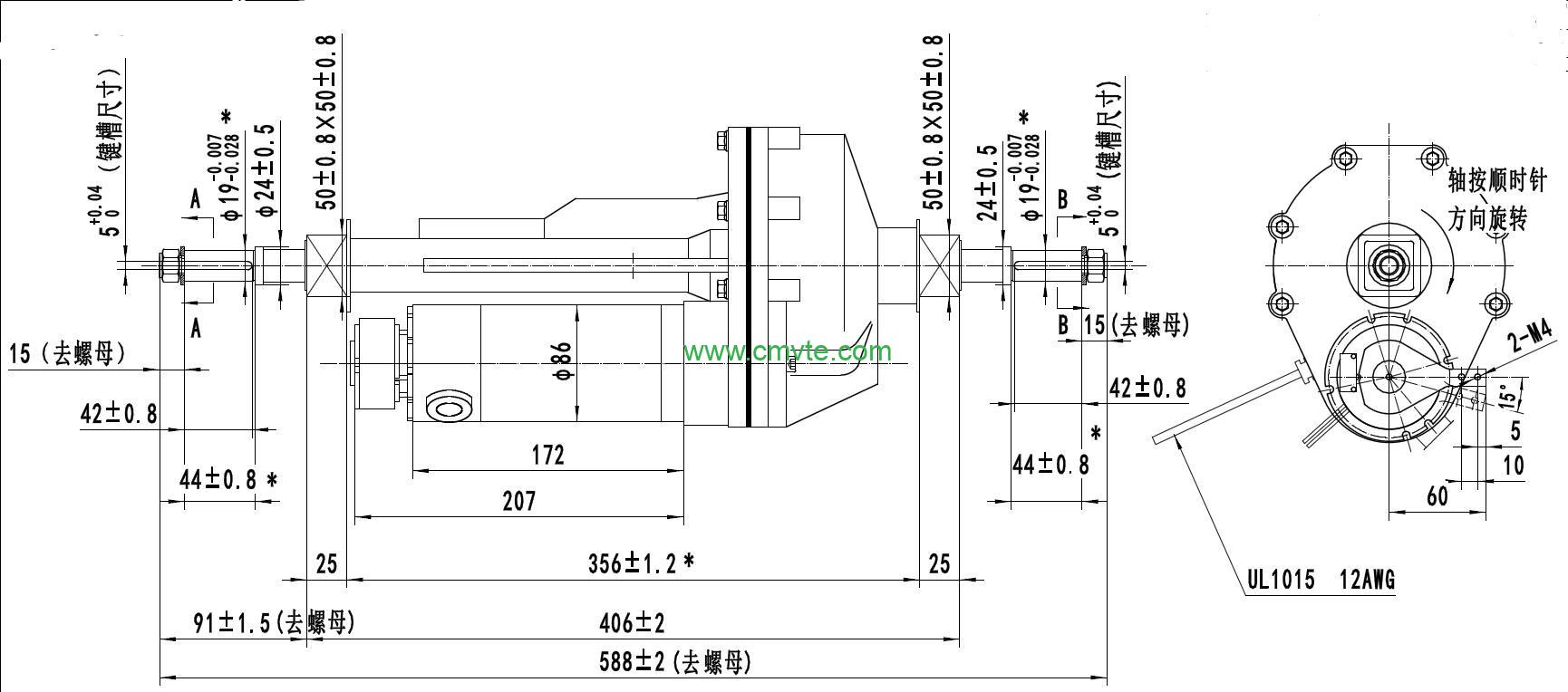

Description : Transaxle
Operating Voltage : 24VDC
Output Power : 500W
No-load Current 5A
Motor Speed : 4000RPM
No-load Output Speed : 200RPM
Gear Ratio : 19.75:1
Sound Level : 65(dB(A)
Brake Torque 4N.m
Gearmotor Rated Torque : 28N.m
Weight : 12.5kg
Curtis controller 24V 70A DC. Battery indicator. DC-DC converter to drop voltage from DC 24V to 12V. Accelerator you can choose,: Handle throttle, folk-lift handle, thumb switch, gas pedal etc. Battery we can prepare you lead acid or lithium battery.
