50T Heavy-Duty Truck Diesel-to-Electric Conversion Kit – 235KW Direct-Drive Electric Axle System, 3940NM Peak Torque

50T Heavy-Duty Truck Direct-Drive Electric Conversion Solution

Overview:
Engineered for maximum power and simplicity, our 50-ton Direct-Drive Electric Conversion Kit is the ultimate solution for modernizing heavy-duty trucks. This system eliminates the conventional engine and gearbox, directly coupling a high-torque electric motor to the truck’s rear axle for exceptional efficiency and reduced maintenance in the most demanding applications.

Key Specifications:

• Electric Motor: 235KW rated power (395KW peak)

• Torque Capacity: 2040NM rated (3940NM peak)

• Motor Speed: 1100 RPM rated (2800 RPM peak)

• Drive System: Direct-Drive (No intermediate gearbox)

• Voltage Platform: 600V DC Nominal (400V-750V DC Range)

Complete System Components:

• Power System: High-torque direct-drive electric motor

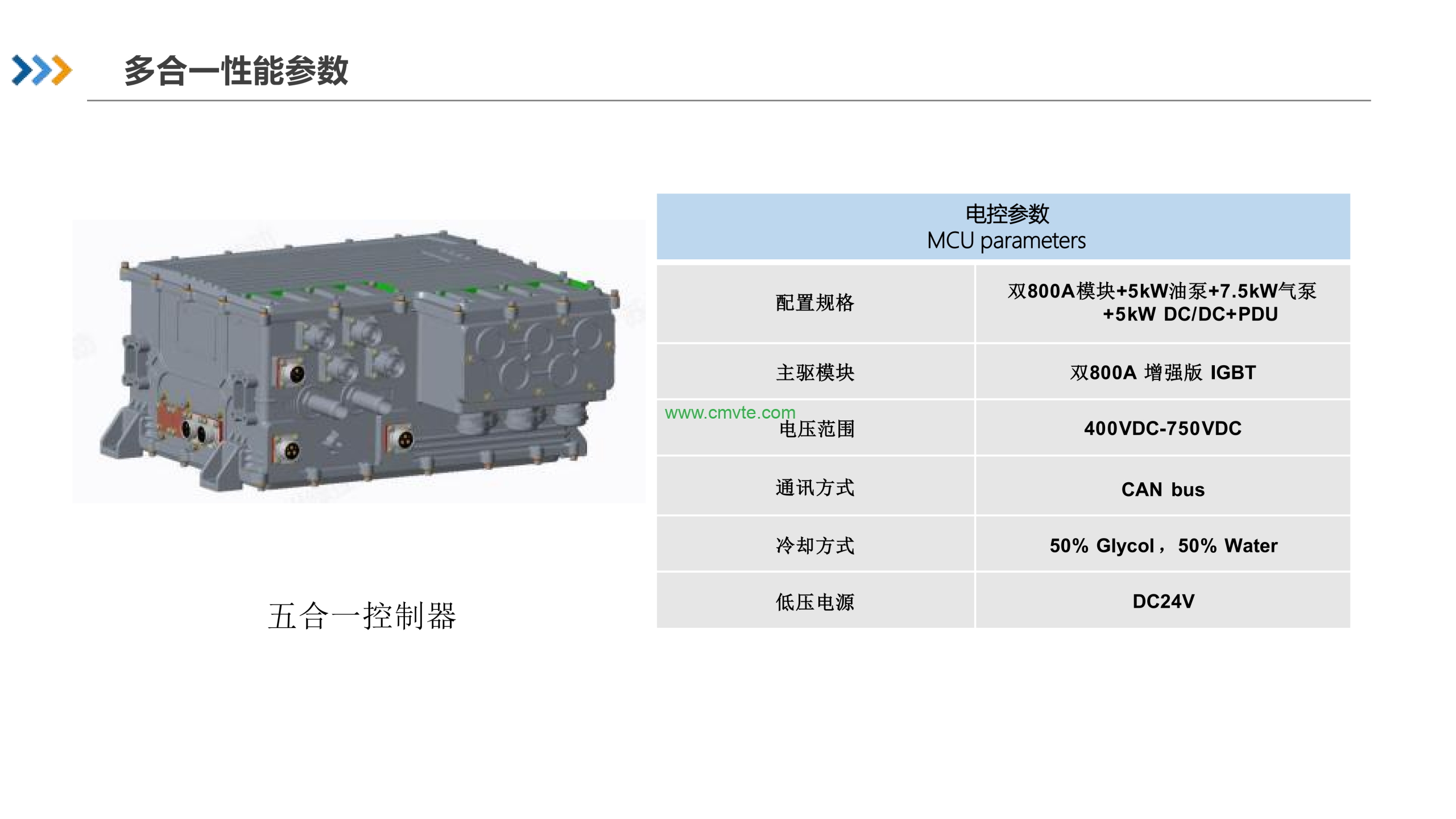

• Control Units: Motor controller, Vehicle Control Unit (VCU)

• Battery System: High-voltage battery pack (600V platform)

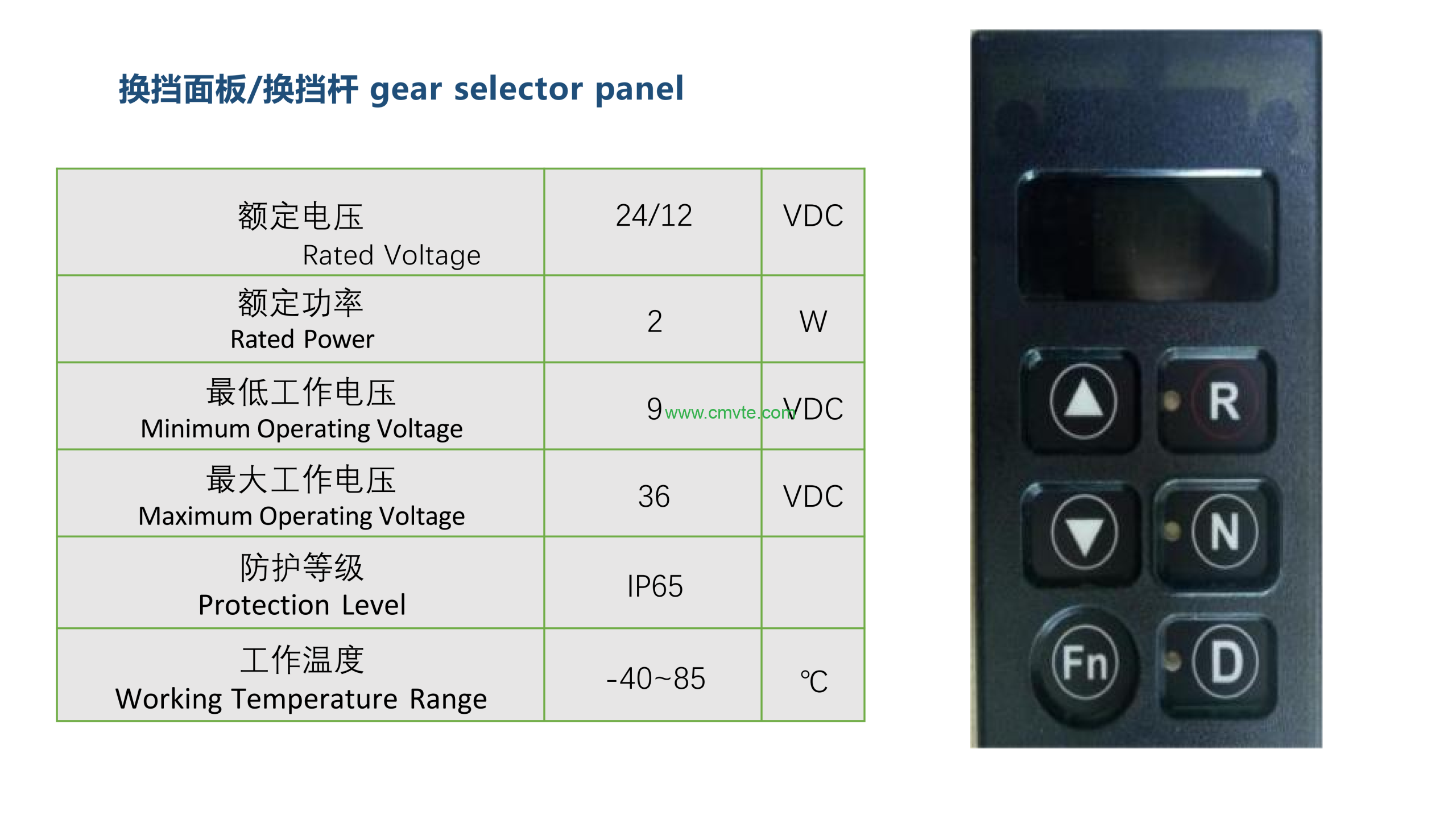

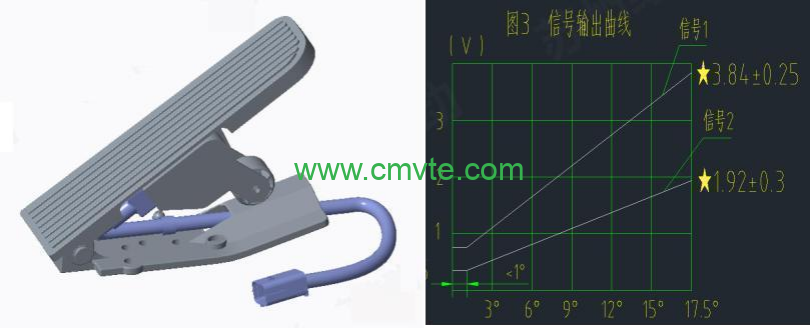

• Driving Interface: Gear selection panel, digital instrument cluster, accelerator & brake pedals

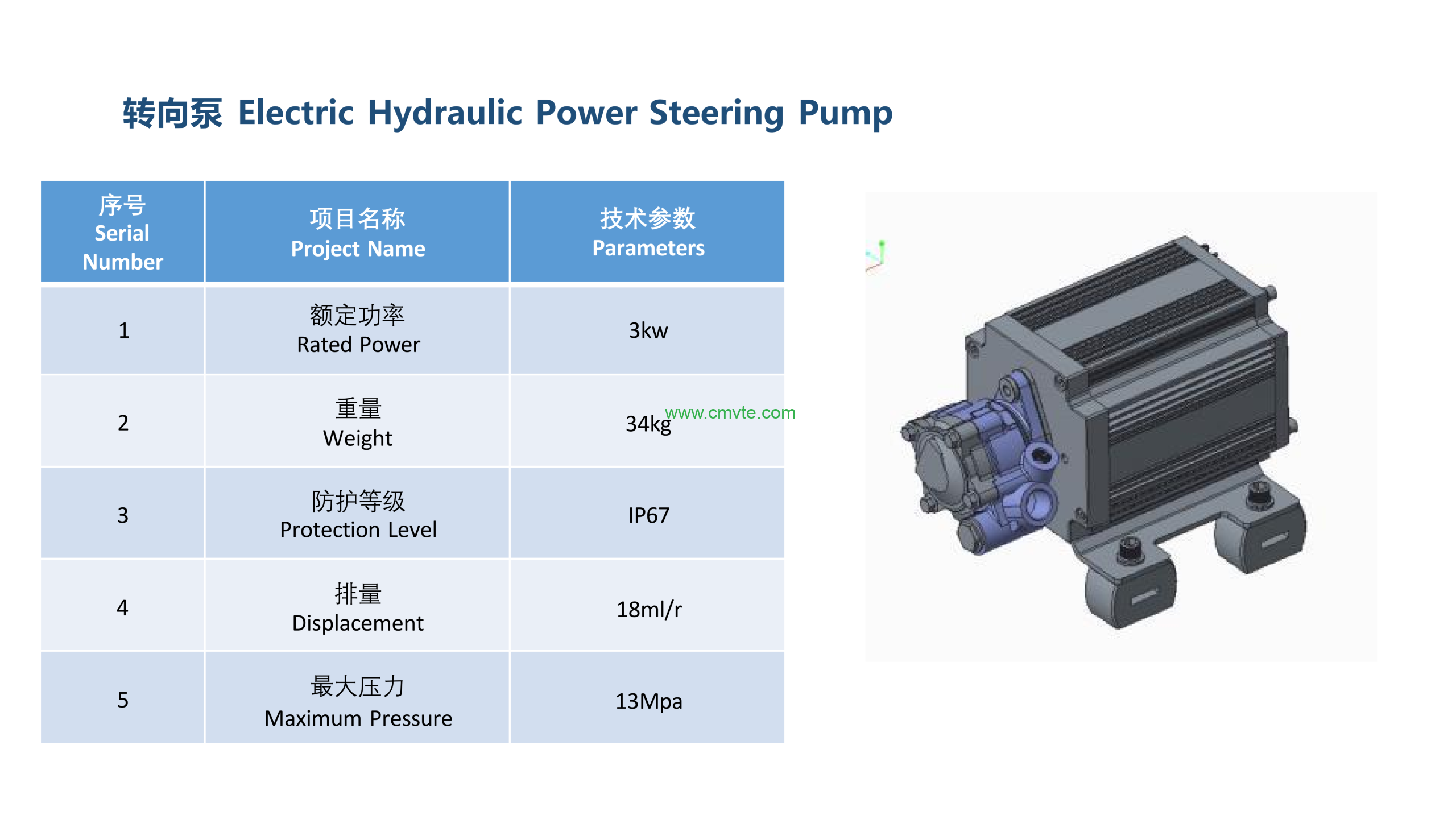

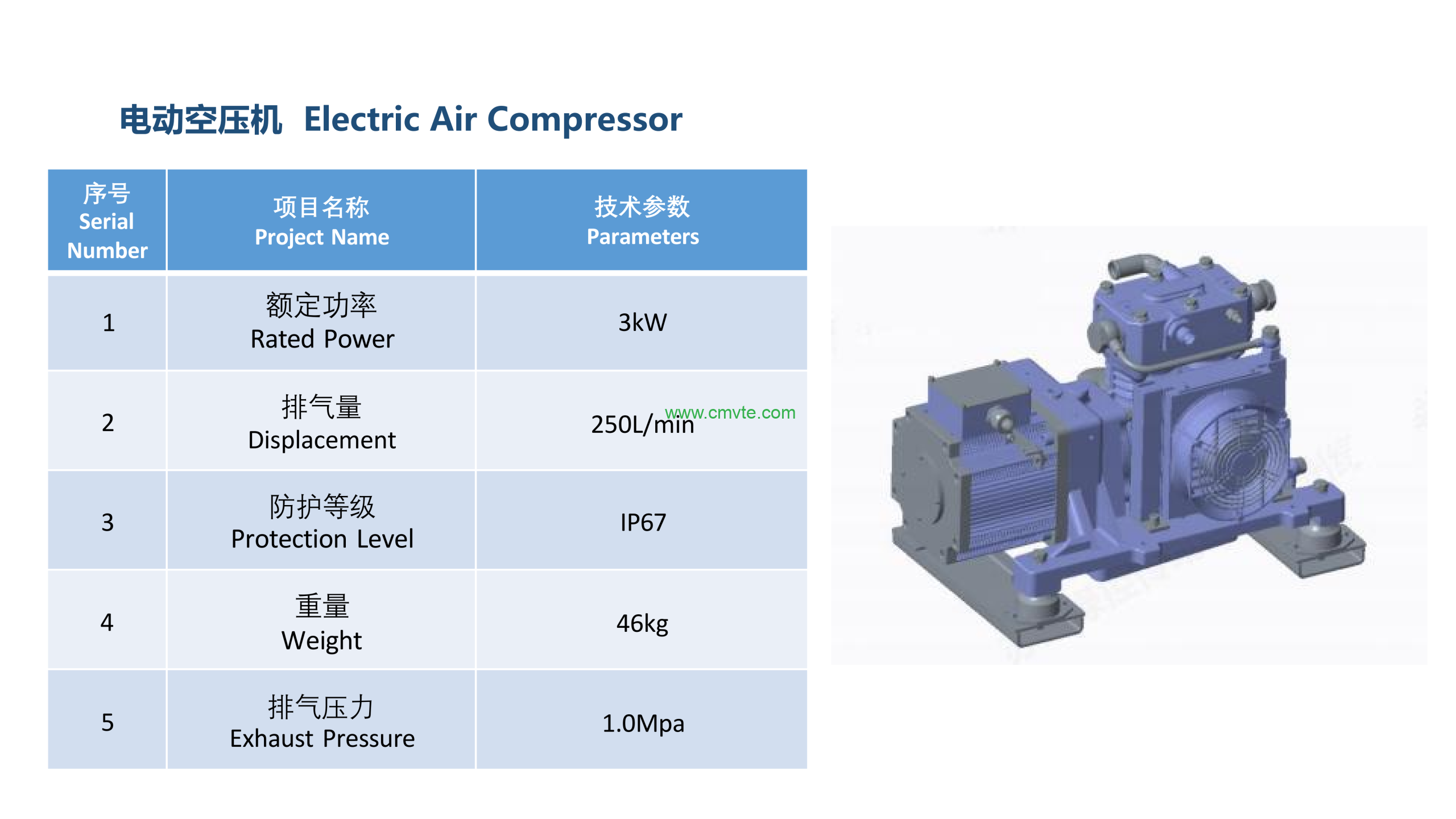

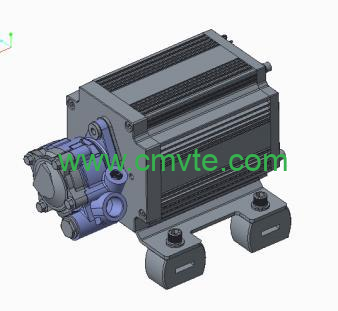

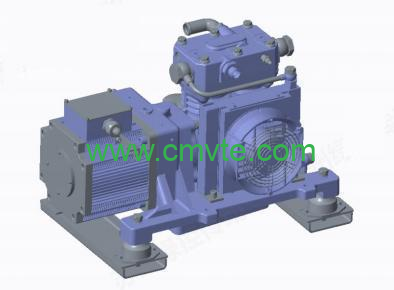

• Ancillary Systems: Electric AC compressor, electric power steering pump, brake air compressor

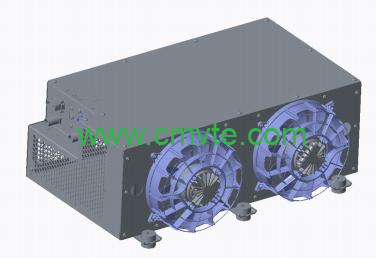

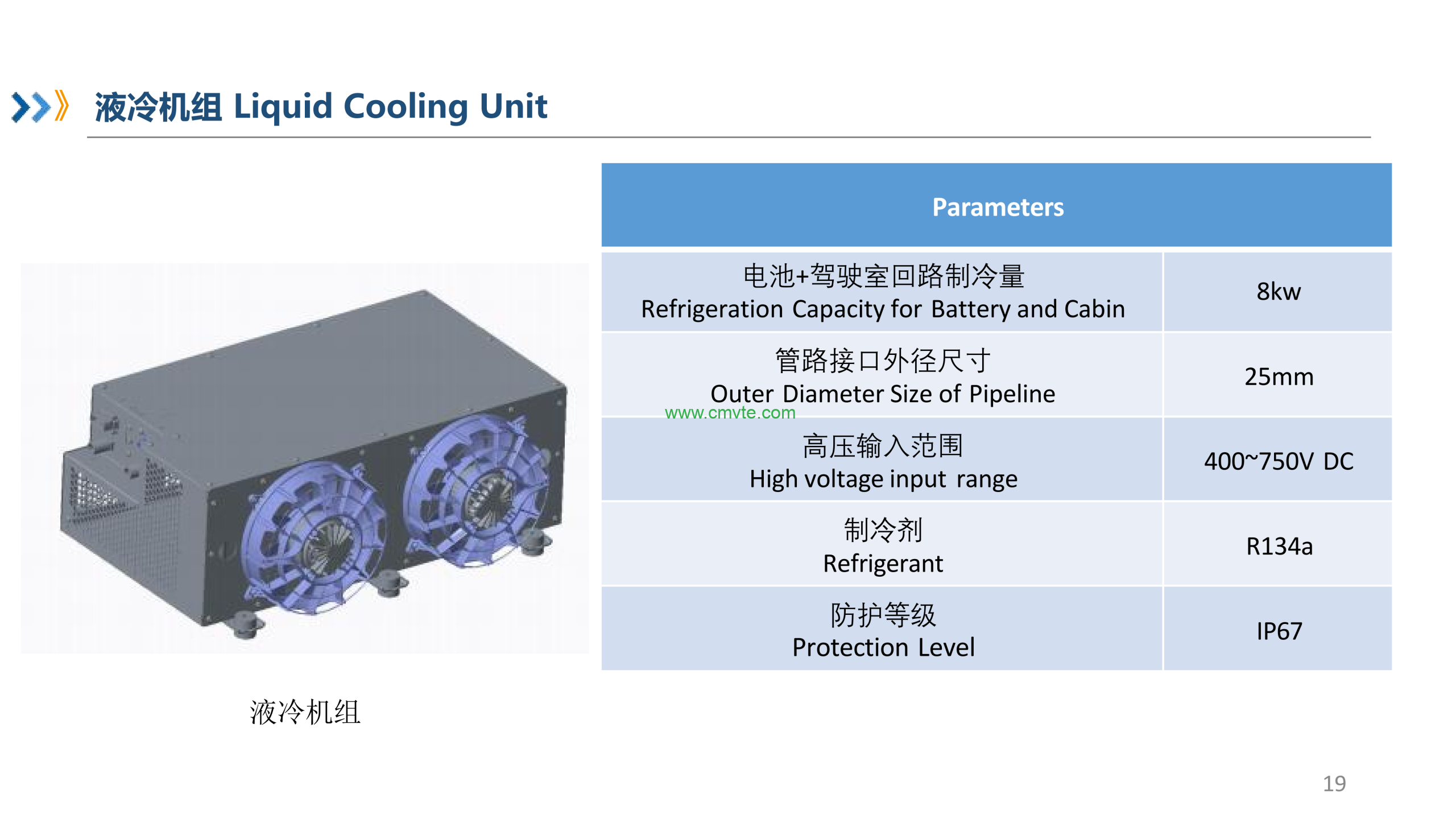

• Thermal Management: Advanced liquid cooling system and motor thermal management

Performance & Design Benefits:

• Massive Torque Output: Delivers a massive 3940 NM of peak torque for exceptional starting and climbing power, perfectly suited for 50-ton loads.

• Simplified Direct-Drive Design: By removing the gearbox, the system reduces mechanical complexity, minimizes power loss, and significantly lowers long-term maintenance costs.

• High-Efficiency Platform: The 600V nominal voltage platform ensures high-efficiency power transfer, optimizing energy consumption and operational range.

• Robust & Reliable: Built specifically for the high-stress environment of heavy-duty hauling, from mining and quarrying to heavy cargo transport.

• Seamless Integration: The direct connection to the existing drive shaft simplifies the conversion process while leveraging the truck’s original rear axle.

Application:
This high-capacity conversion kit is ideally suited for 30 to 50-ton heavy trucks, including:

• Dump Trucks

• Mining Trucks

• Logging Trucks

• Heavy Cargo Transport Vehicles

Package Includes:
All necessary components for a complete conversion: Direct-drive motor, motor controller, VCU, high-voltage battery system, thermal management, and all required accessories and cab interfaces.
