Boost your EV project with our 7.5KW 72V PMSM rear-wheel drive train kit. Perfect for golf carts, utility vehicles & low-speed EVs. Delivers high torque, reliability & smooth operation. Easy installation.

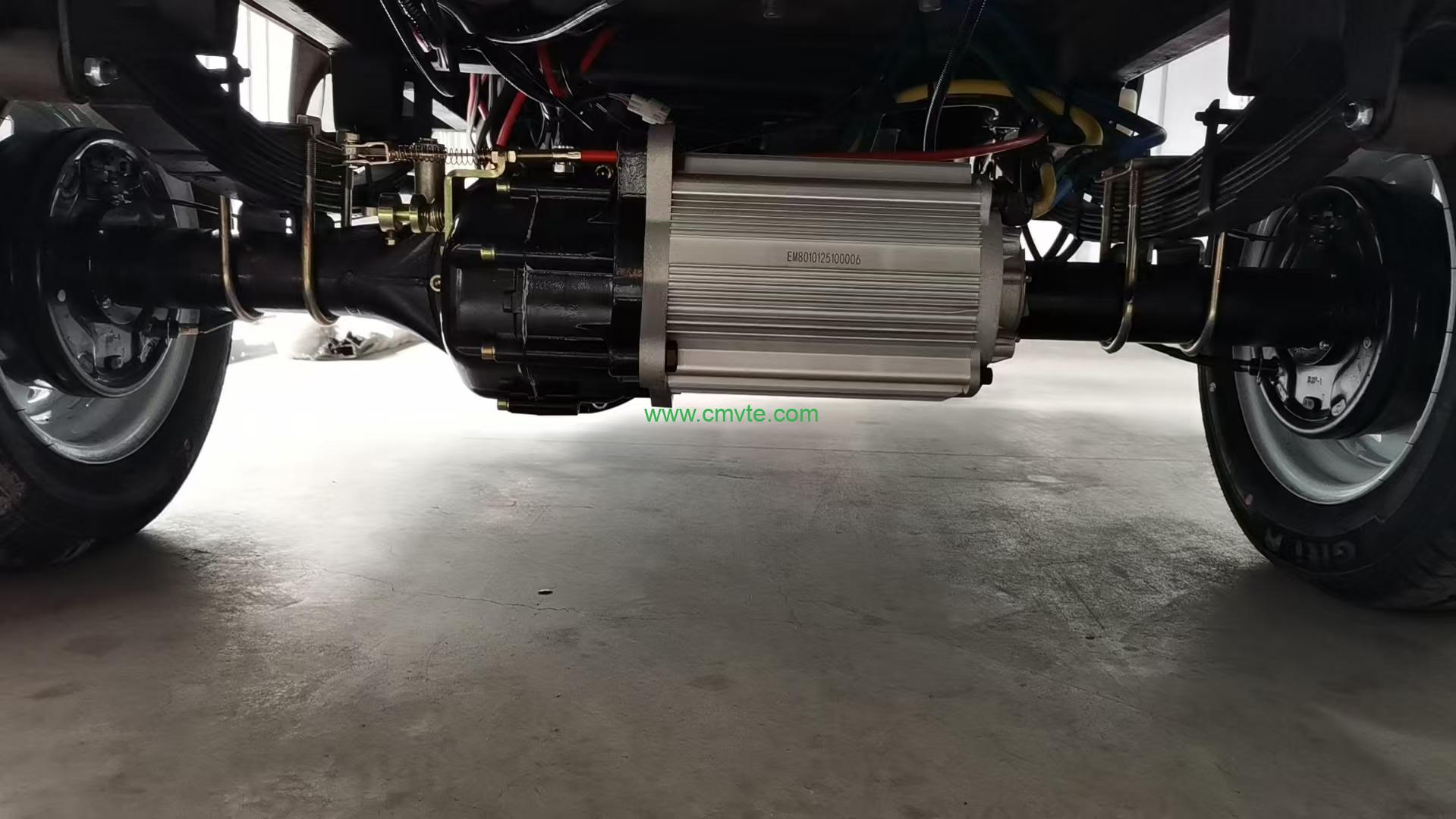

The rear axle can be customized with the length, PCD, brake type , gear ratios etc you need. We will provide a drawing formats for your vehicle.
| MOTOR PARAMETERS | Model | EM801
|
| Rated power（kW） | 7.5 | |
| Max power（kW） | 15 | |
| Rated torque（N·m） | 24 | |
| Max torque（N·m） | 92 | |
| Rated RPM（rpm） | 3000 | |
| Max RPM（rpm） | 7000 | |
| Insulation class | H | |
| Cooling methods（cooling） | Air cooling | |
| Protection grade | IP67 | |
| Direction (facing the shaft extension end) | Clockwise ■ Counterclockwise | |
| Outline dimensions (mm) | Φ274.3×265（±2） | |
| Shaft spline | Internal spline | |
| Weight（kg） | 24±2 | |

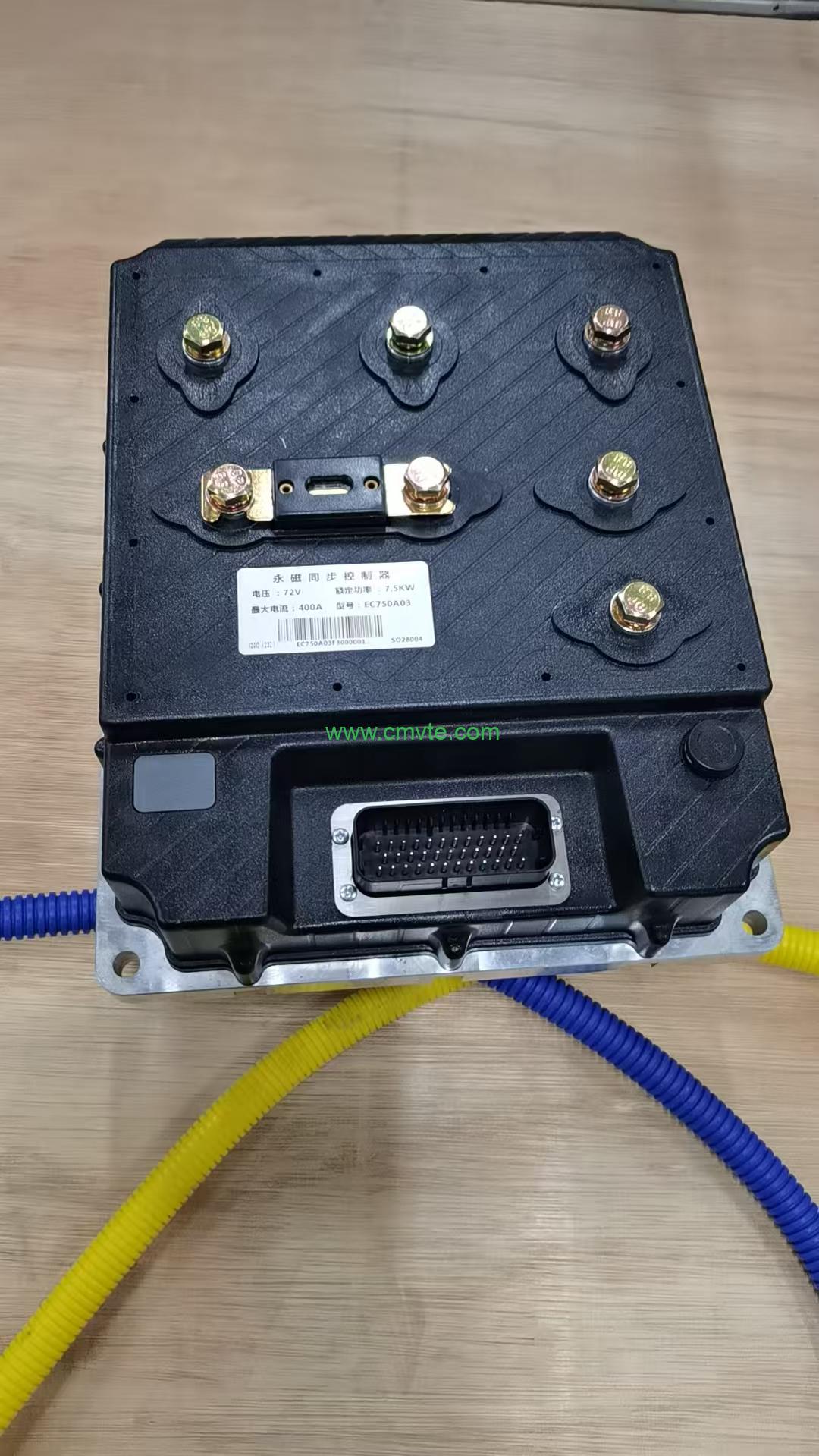

| CONTROLLER | Model | EC750
|
| Battery rated input voltage (VDC) | 72V | |
| Input battery voltage range | ||
| Rated output current (A) | 200 | |
| Maximum output current (A) | 500 | |
| Rated capacity (KVA) | 17.5 | |
| Maximum capacity (KVA) | 35 | |
| Protection level | IP67 | |
| Auxiliary power supply voltage (VDC) | 72(Bus voltage) | |
| Main body size (mm) | 227*159*93±2.0 | |
| Mass (kg) | 3±0.5 |

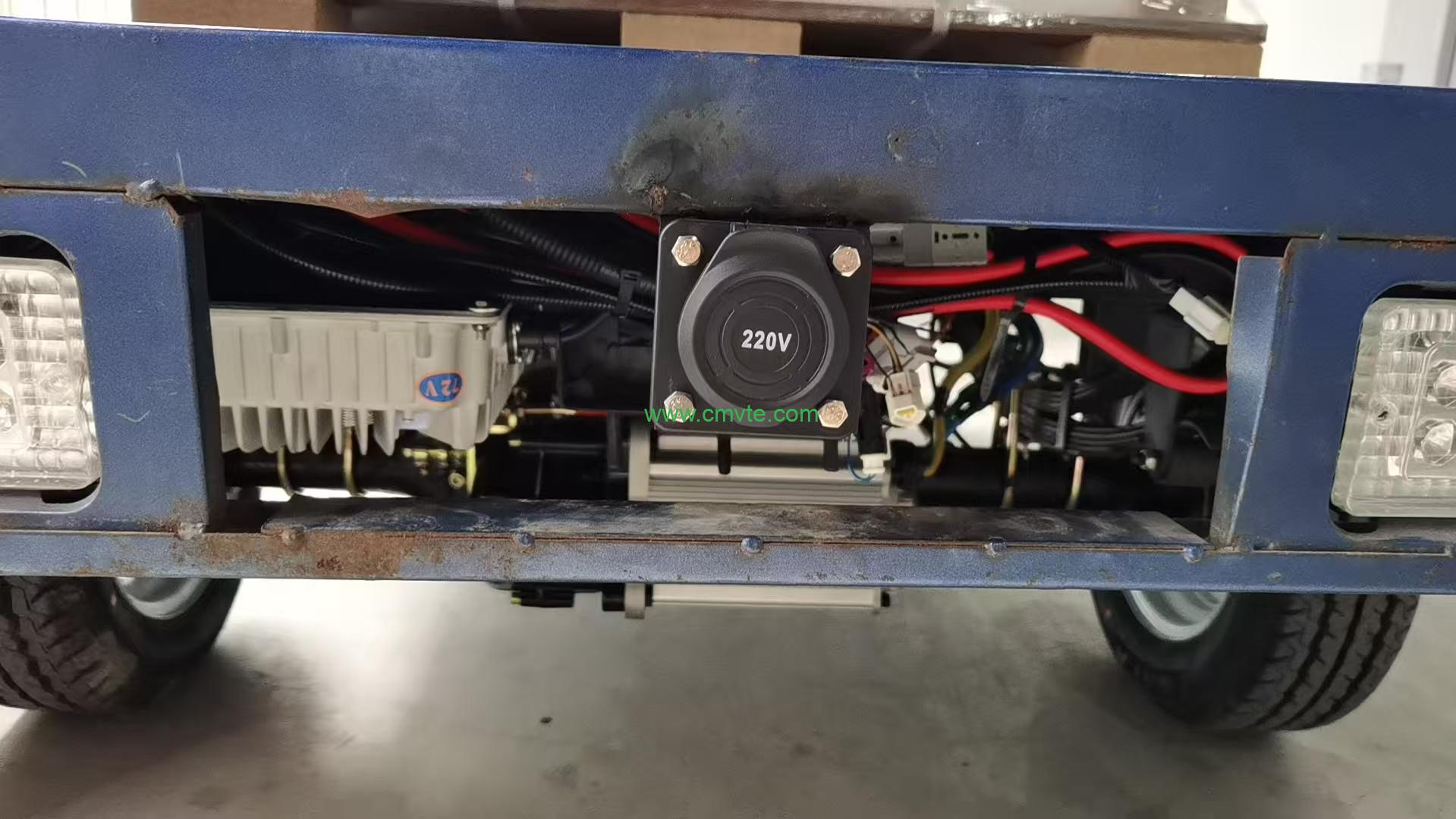

This conversion kit of 72v 7.5kw includes motor, controller, wire harness, gear selector, dashboard,DC-DC converter, rear axle or gearbox+two half shafts, lithium battery, charger, suitable for making new vehicles or EV conversion like tricycle, golf buggies, ATV, UTV, Carriage, light truck or sedans etc.

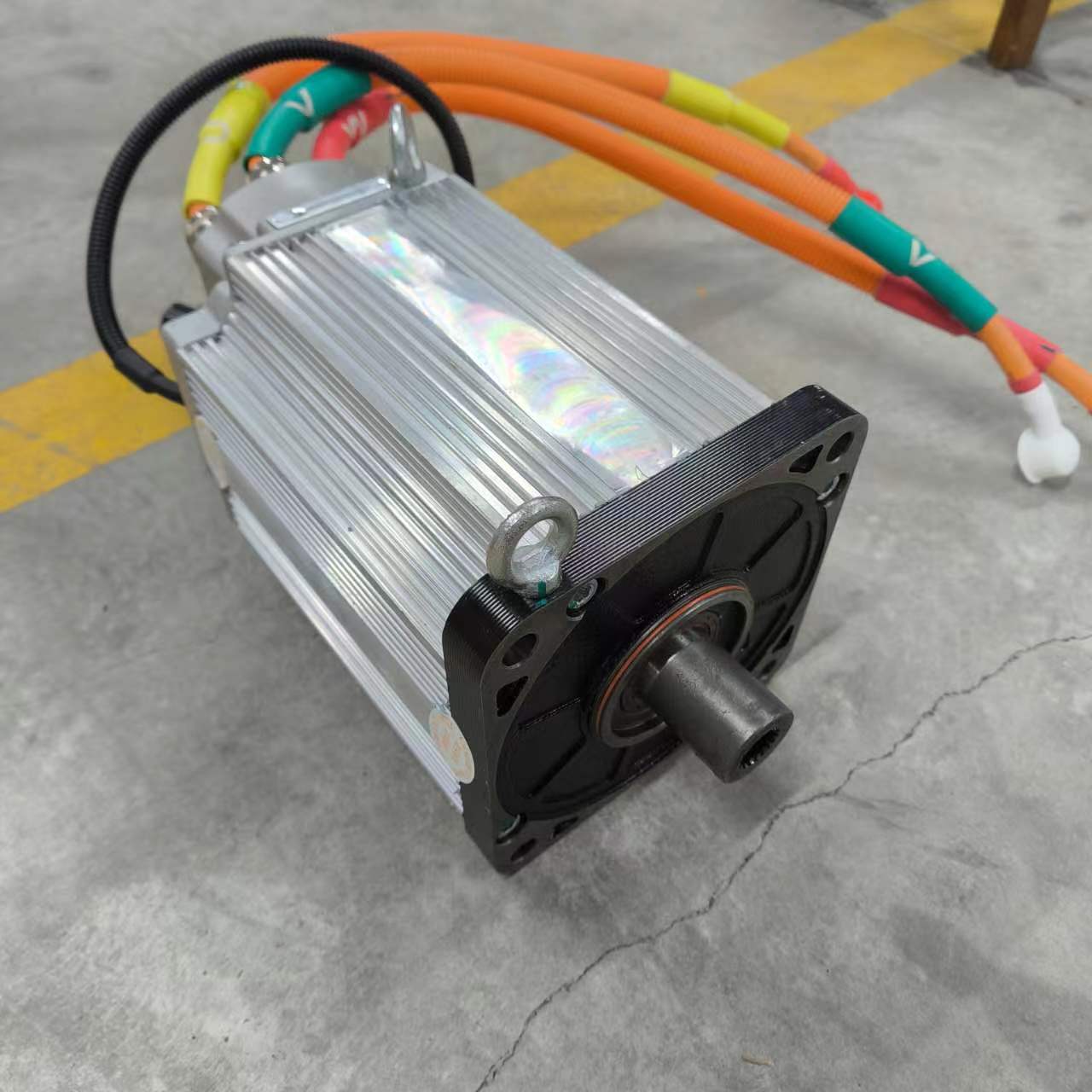

EM801 Motor and Its Control System

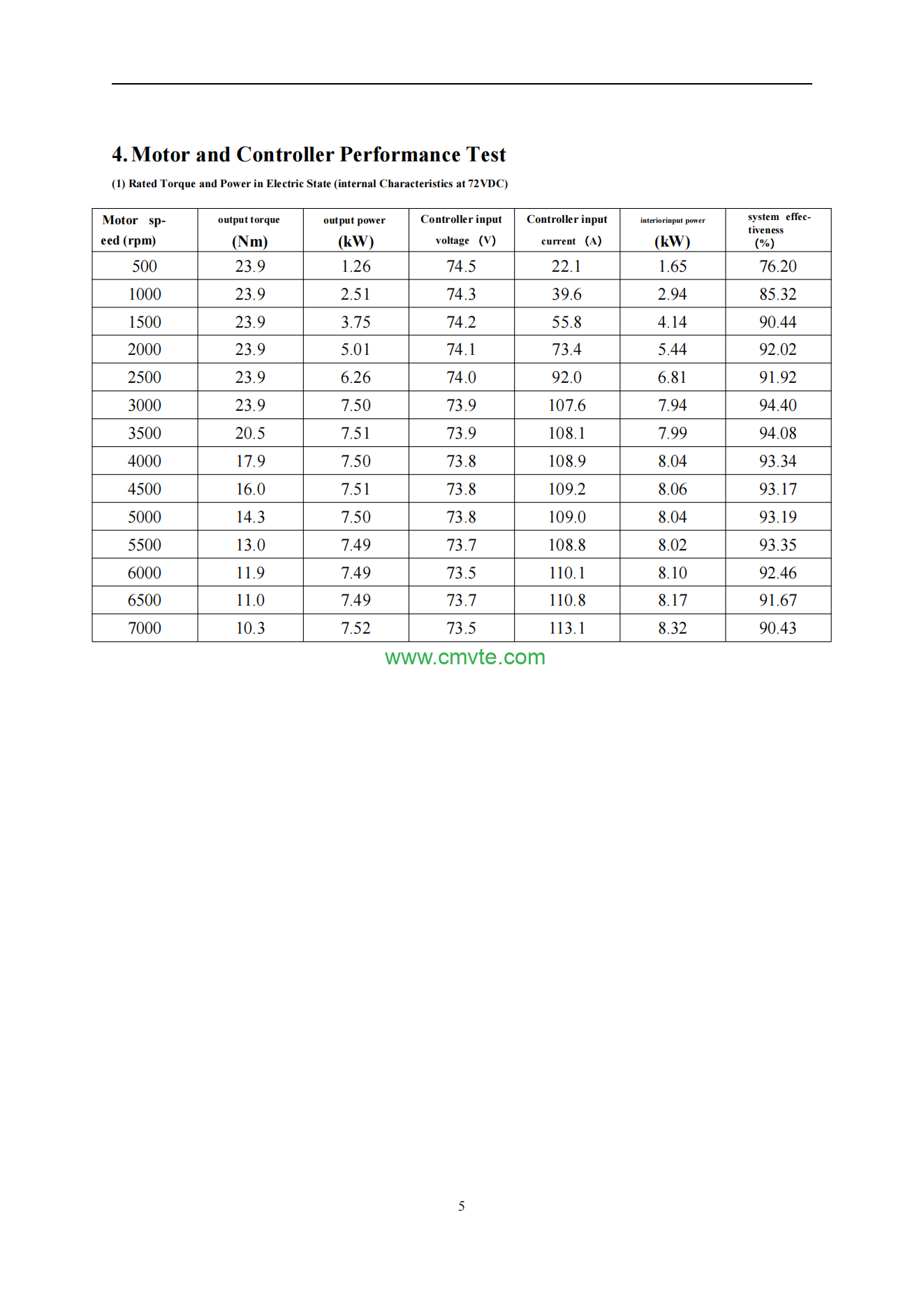

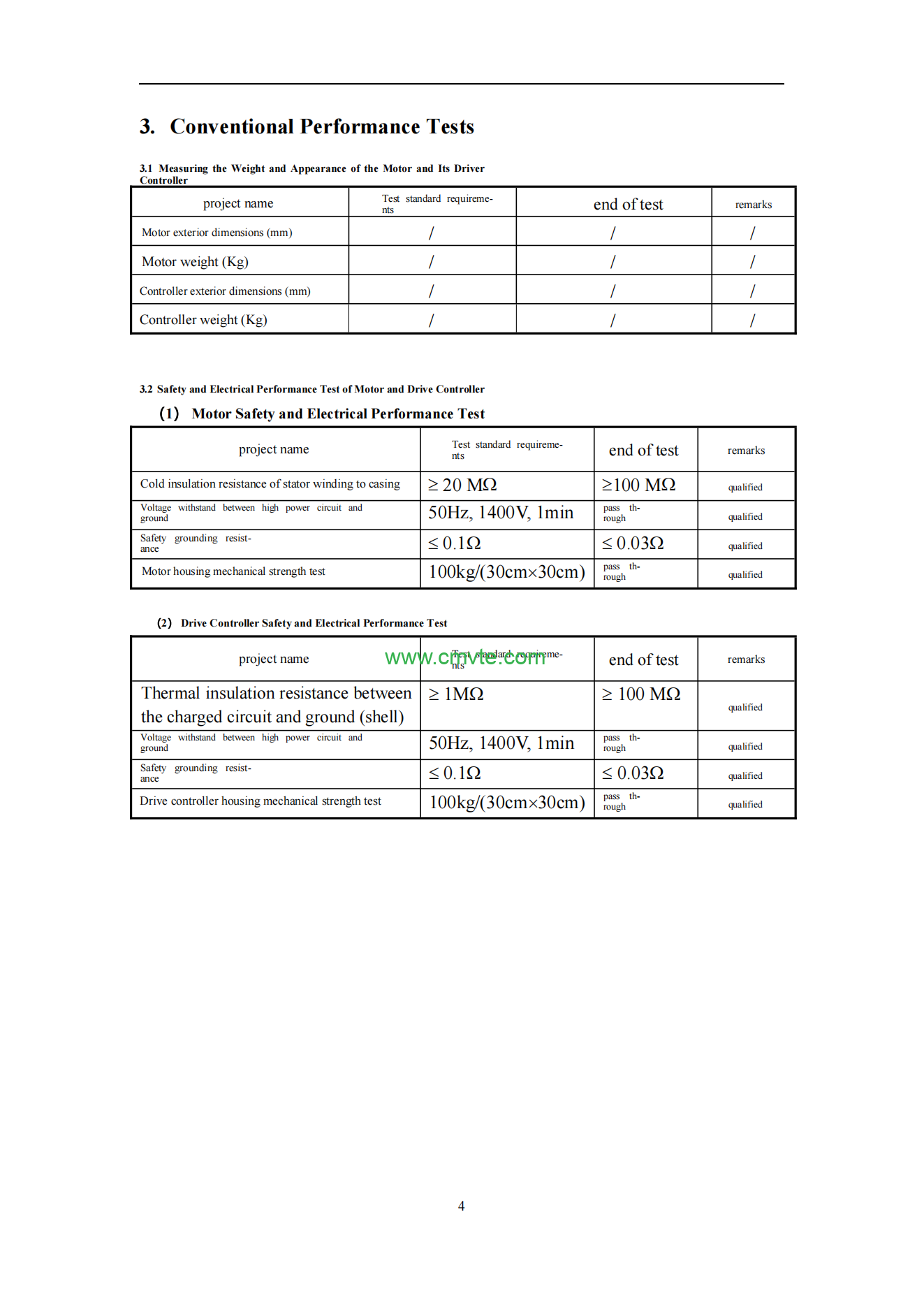

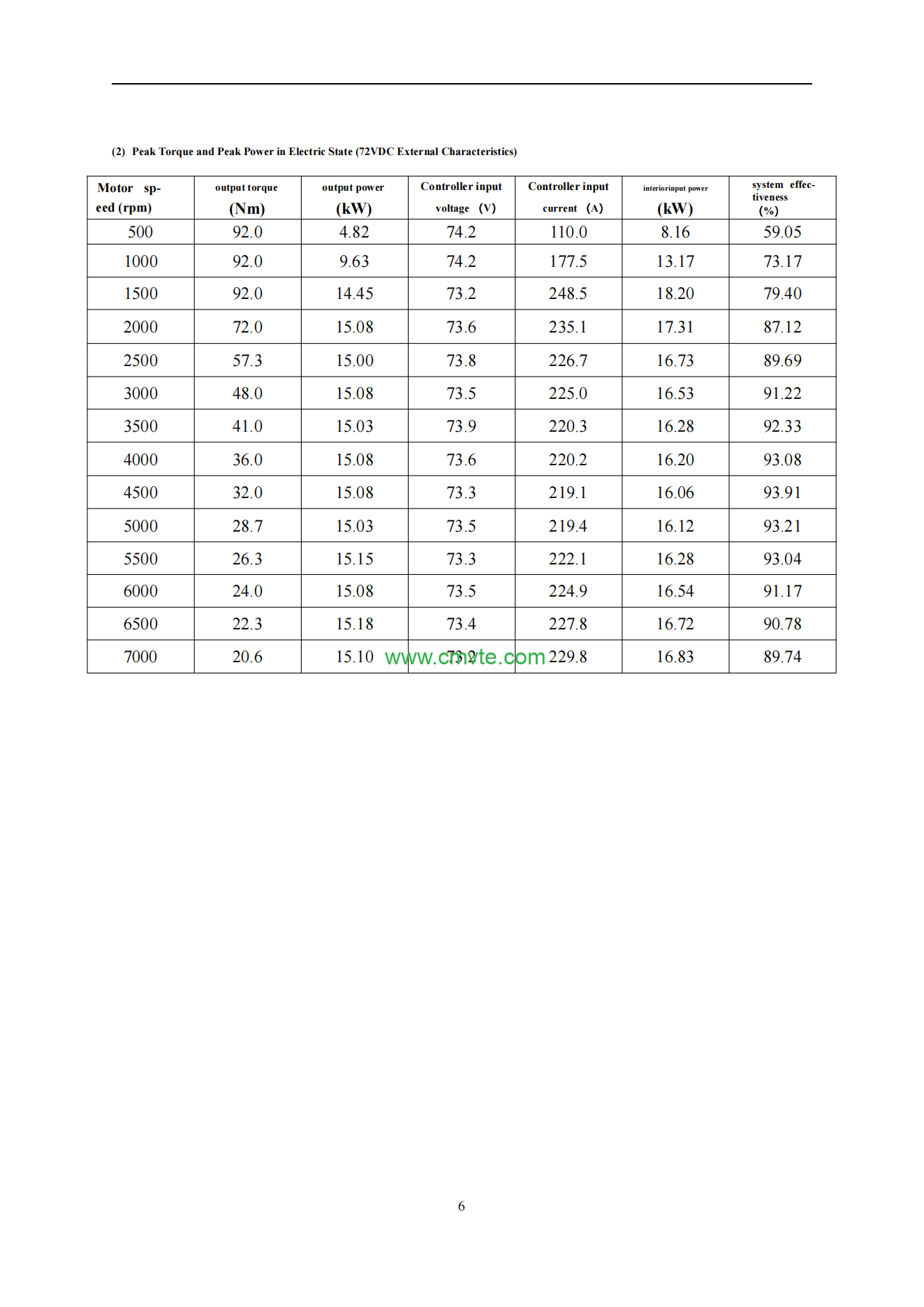

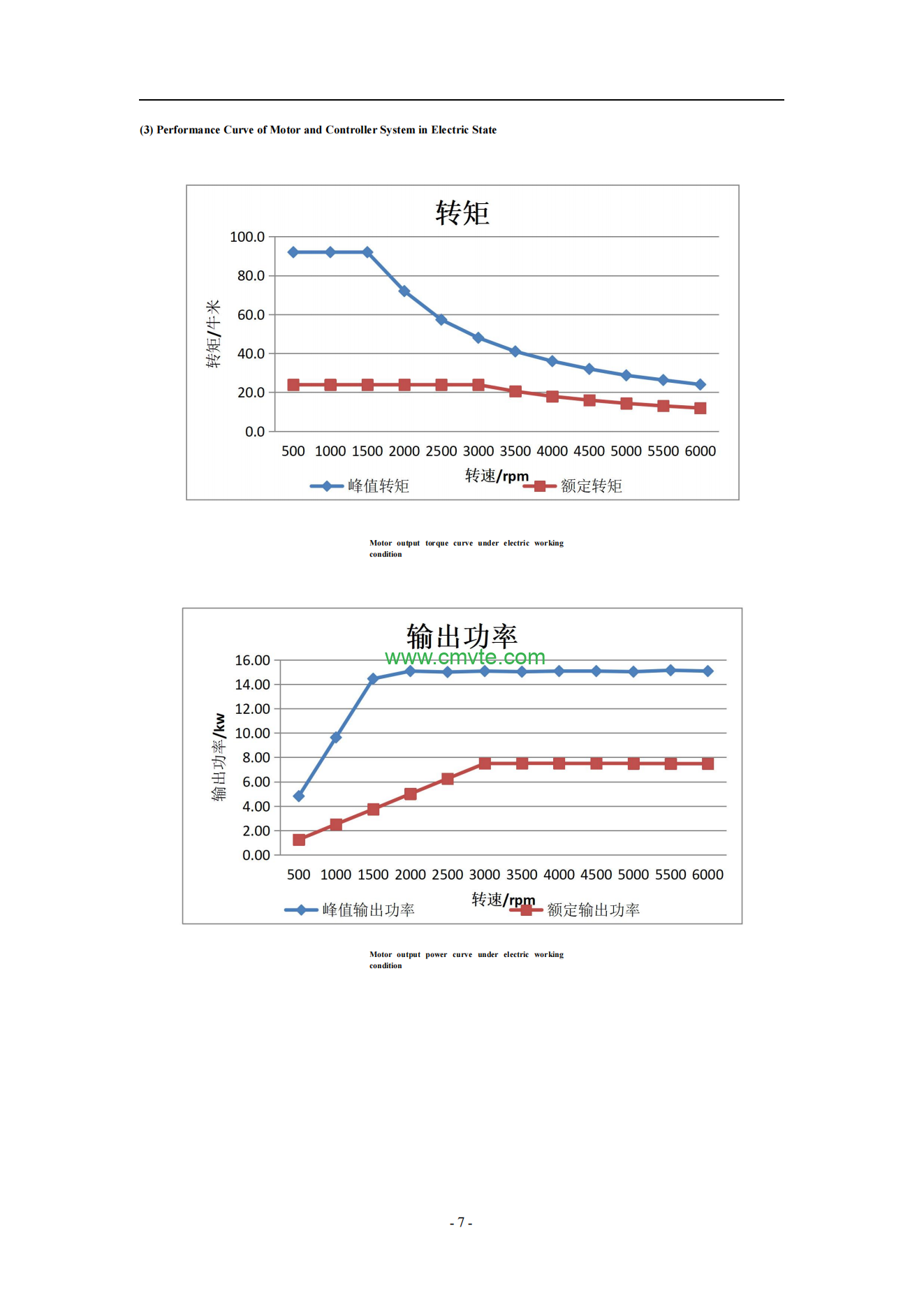

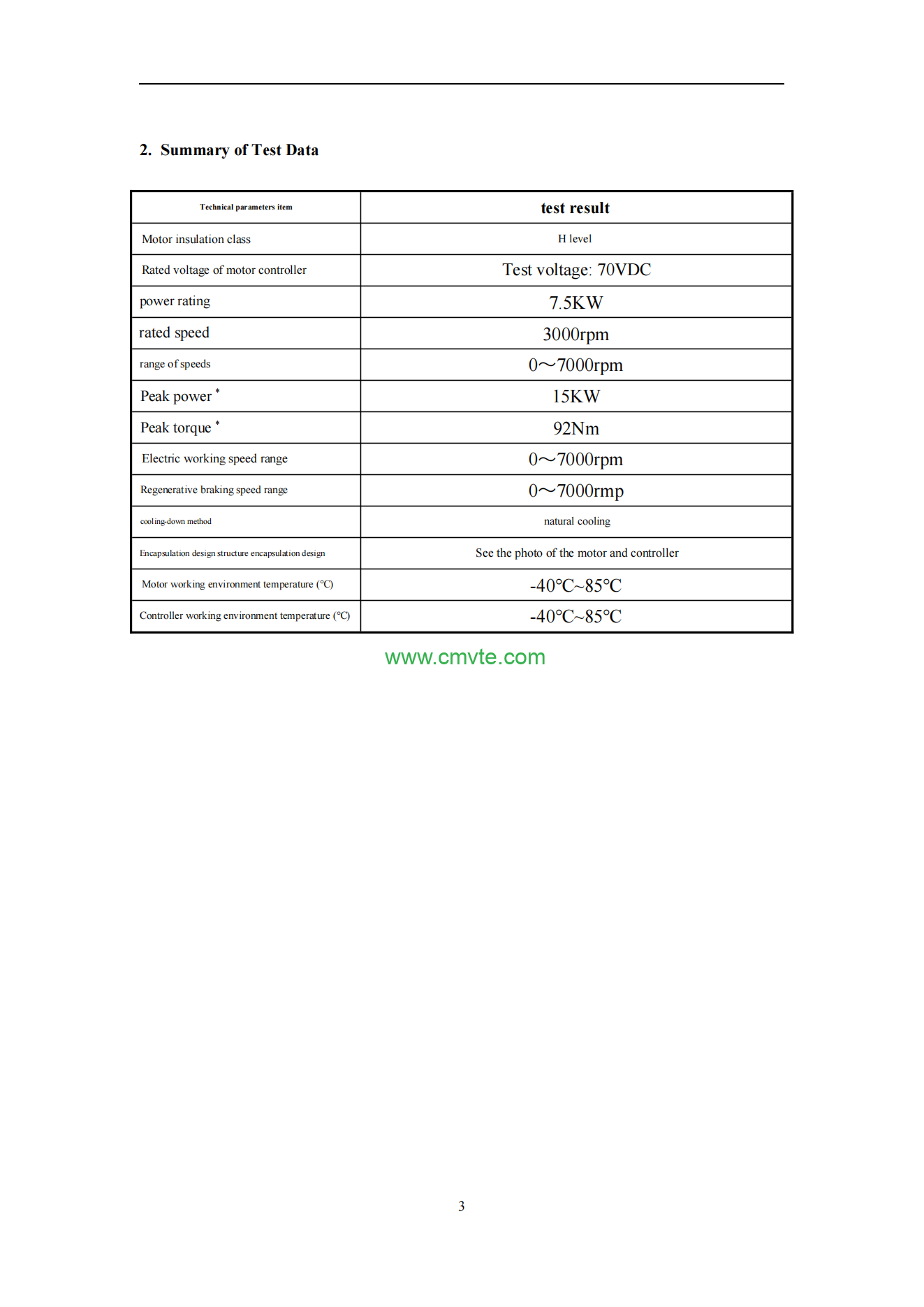

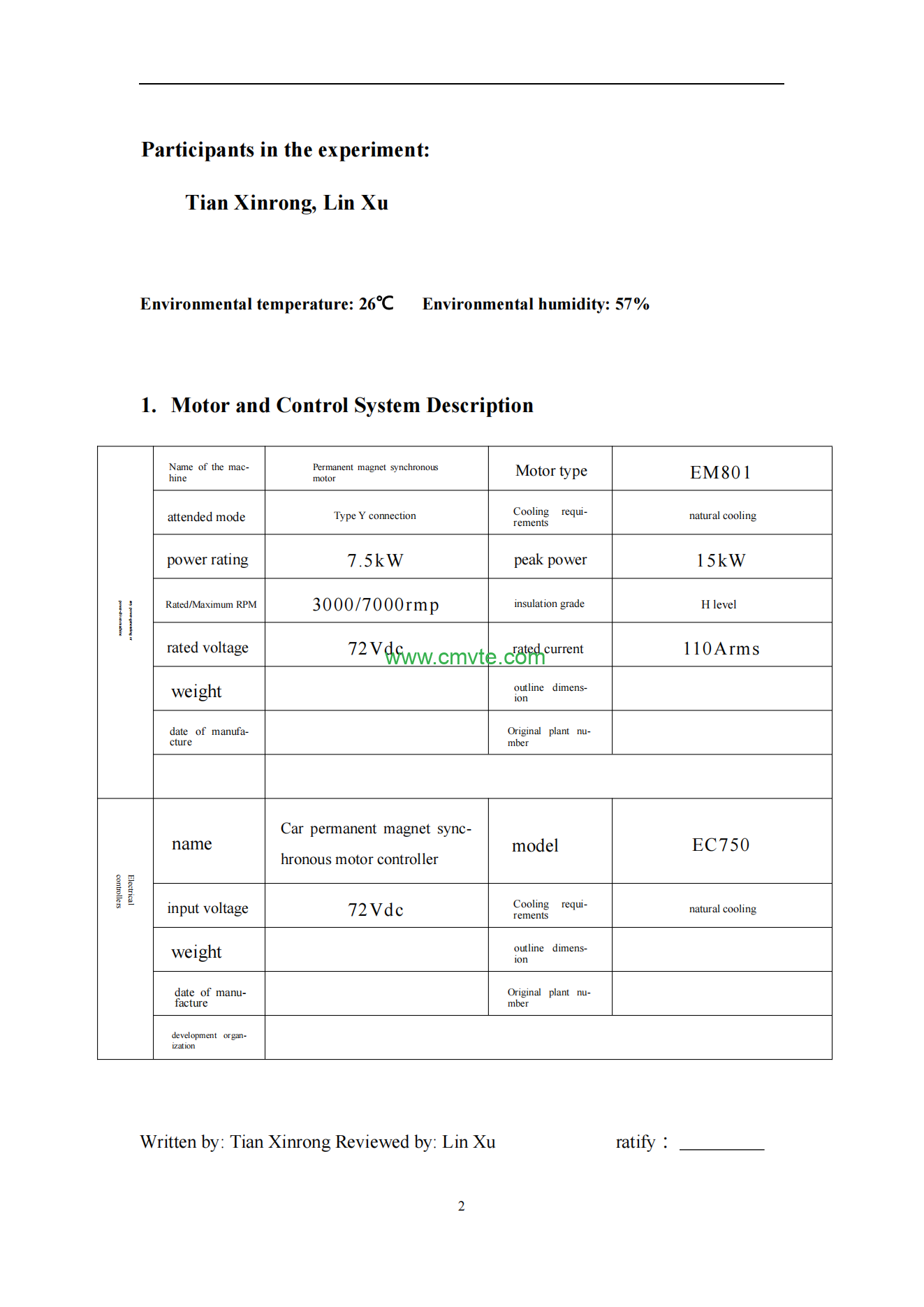

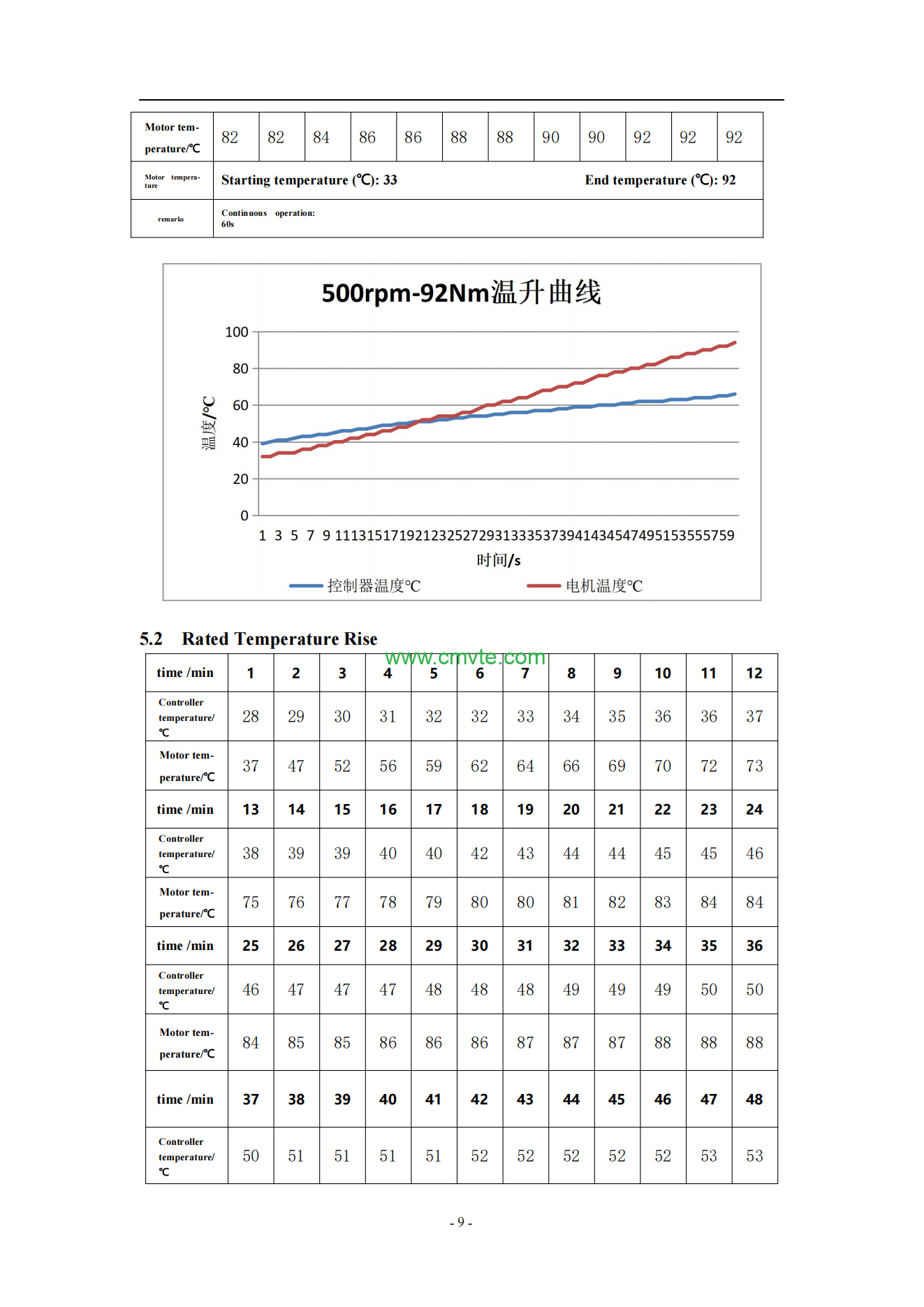

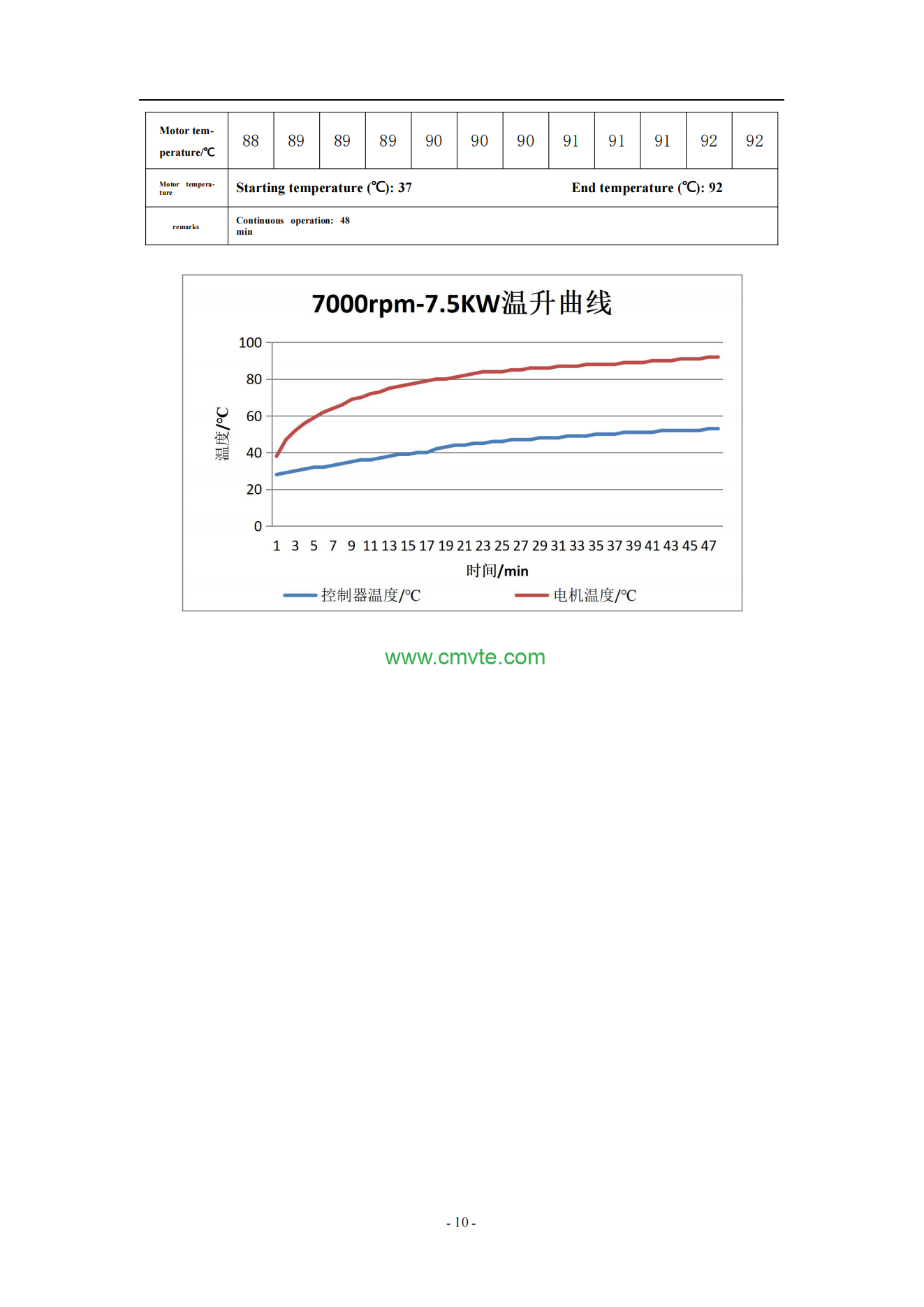

Static Test Report
