This is a PMSM liquid cool type motor, designed for trucks and mini buses, high torque, direct drive. No need any reducer or gearbox. The motor power is passed to rear axle through transfer shaft directly,easy to install and high efficiency.

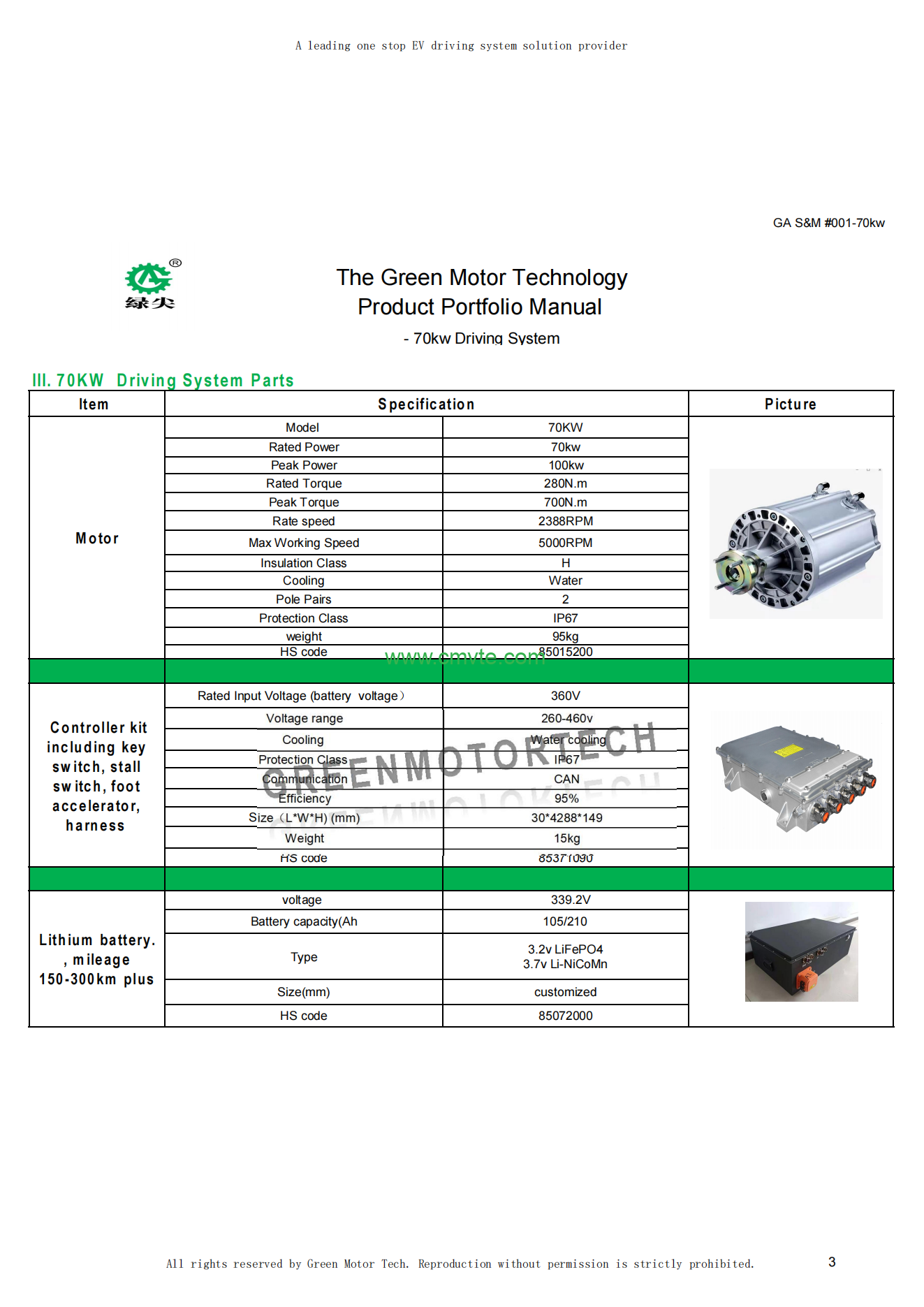

| III. 70KW Driving System Parts | ||||
| Item | Specification | Picture | ||
| Motor parameter | Model |
|
||
| Rated Power | 70kw | |||
| Peak Power | 100kw | |||
| Rated Torque | 280N.m | |||
| Peak Torque | 700N.m | |||
| Rate speed | 2388RPM | |||
| Max Working Speed | 5000RPM | |||
| Insulation Class | H | |||
| Cooling | Water | |||
| Pole Pairs | 2 | |||
| Protection Class | IP67 | |||
| weight | 101kg | |||
| HS code | 85015200 | |||
| Controller kit including key switch, stall switch, foot accelerator, harness, with contactor |
|
345V |  |
||||||||||
| Voltage range | 260-460v | ||||||||||||
| Cooling | Water cooling | ||||||||||||
| Protection Class | IP67 | ||||||||||||
| Communication | CAN | ||||||||||||
| Efficiency | 95% | ||||||||||||
| Size（L*W*H) (mm) | 30*4288*149 | ||||||||||||
| Weight | 15kg | ||||||||||||
| HS code | 85371090 |
| Lithium battery. this is only sample, we can customize per your needs |
voltage | 336.9V |
|
|
| Battery capacity(Ah | 105AH, 210AH etc | |||
| Type | 3.2v LiFePO4 3.7v Li-NiCoMn |
|||
| Size(mm) | customized | |||
| HS code | 85072000 |
| Charger for lithium battery(CAN) | Input voltage (V) | 360V |
|
|
| Output voltage(V) | 12V | |||
| Charging current (A) | 25A | |||
| HS code | 85044099 |
| DC DC converter | Input voltage (V) | 360V |
|
|
| Output voltage(V) | 12V | |||
| Protection class | IP68 | |||
| HS code | 85044099 |
| Instrument cluster | LITHIUM BATTERY TYPE | Instantaneous current |
|
|
| Speed | ||||
| Voltage | ||||
| Battery SOC | ||||
| HS code | 90329000 |
| Steering assembly | Include | Steering wheel |
|
|
| Light control | ||||
| Horn switch | ||||
| Handbrake | ||||
| HS code | 87089490 |
| Eletric Power Steering or electric hydraulic power steering | Rated Power | 360w |
|
|
| HS code | 8708949090 |
| Hydraulic brake system | Components | an air storage tank, a booster, a vacuum pump, brake bump, brake pipe and a common brake pedal |
|
|
| HS code | 8708309990 |
| A/C system | HS code | 8415200000 |
|
| Emergency stop | HS code | 8708309990 |
|
