96V 15KW High-Torque PMSM Rear Axle Conversion Kit | 30KW Peak, 150Nm, Complete Electric Vehicle Kit for UTV, Truck & Van

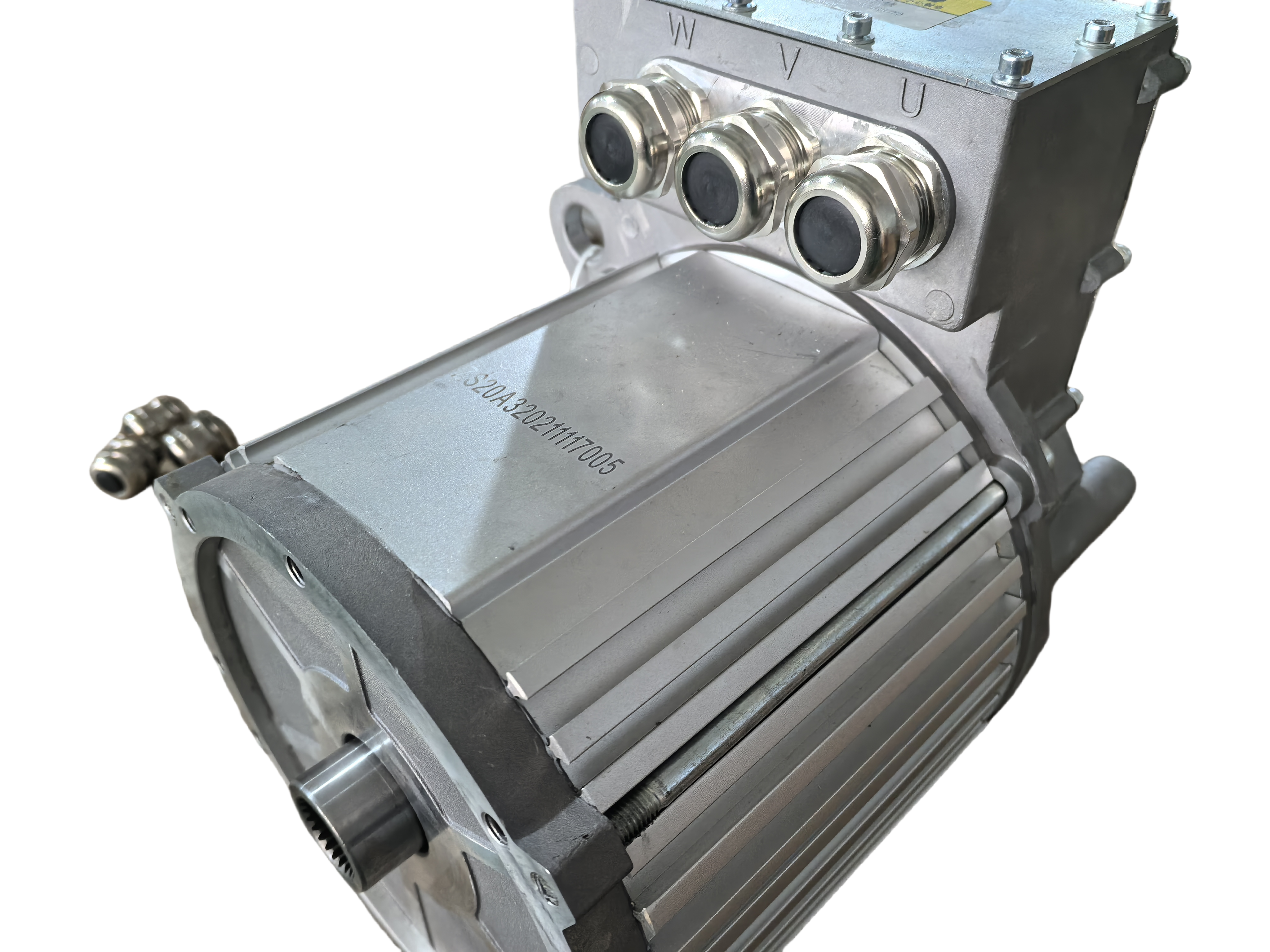

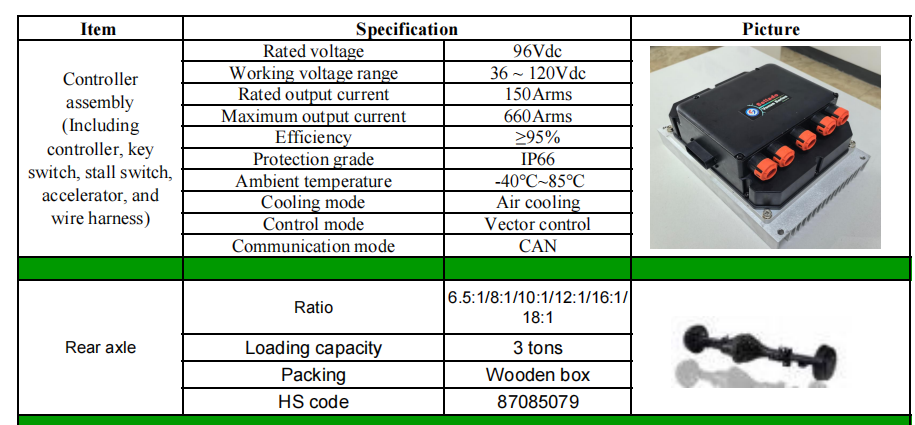

Rated power 15kw Peak power 30kw Battery voltage 96-144Vdc Rated speed 2850RPM Max. speed 6500RPM Rated torque 50N.m Max.torque 150 N.m Ambient temperature -40℃~85℃ Cooling mode Air cooling Protection grade IP67 Insulation grade H Duty S9 Size φ220X239mm Net weight ≤ 27±0.5kg Packing Wooden box 96V PMSM motor rated power 15kw, peak 30KW complete rear axle electric vehicle conversion kit, including motor, controller, gas pedal, battery pack with BMS, charger OBC, charge gun and port, EPS, vaccum brake pump, compressor for AC , rear axle etc. Typical application: UTV, ATV, light loading commercial truck,pickup.van , sightseeing mini bus etc

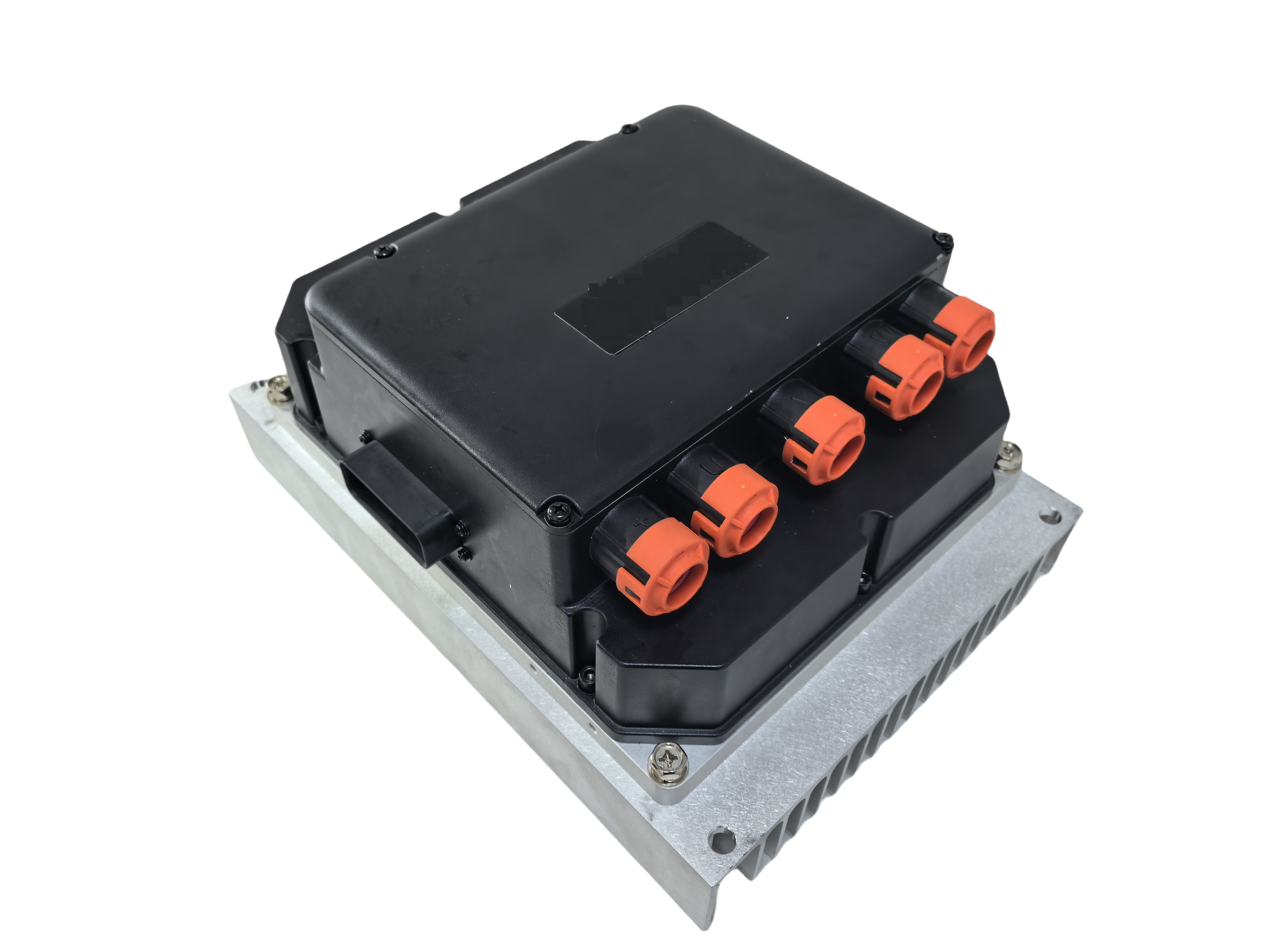

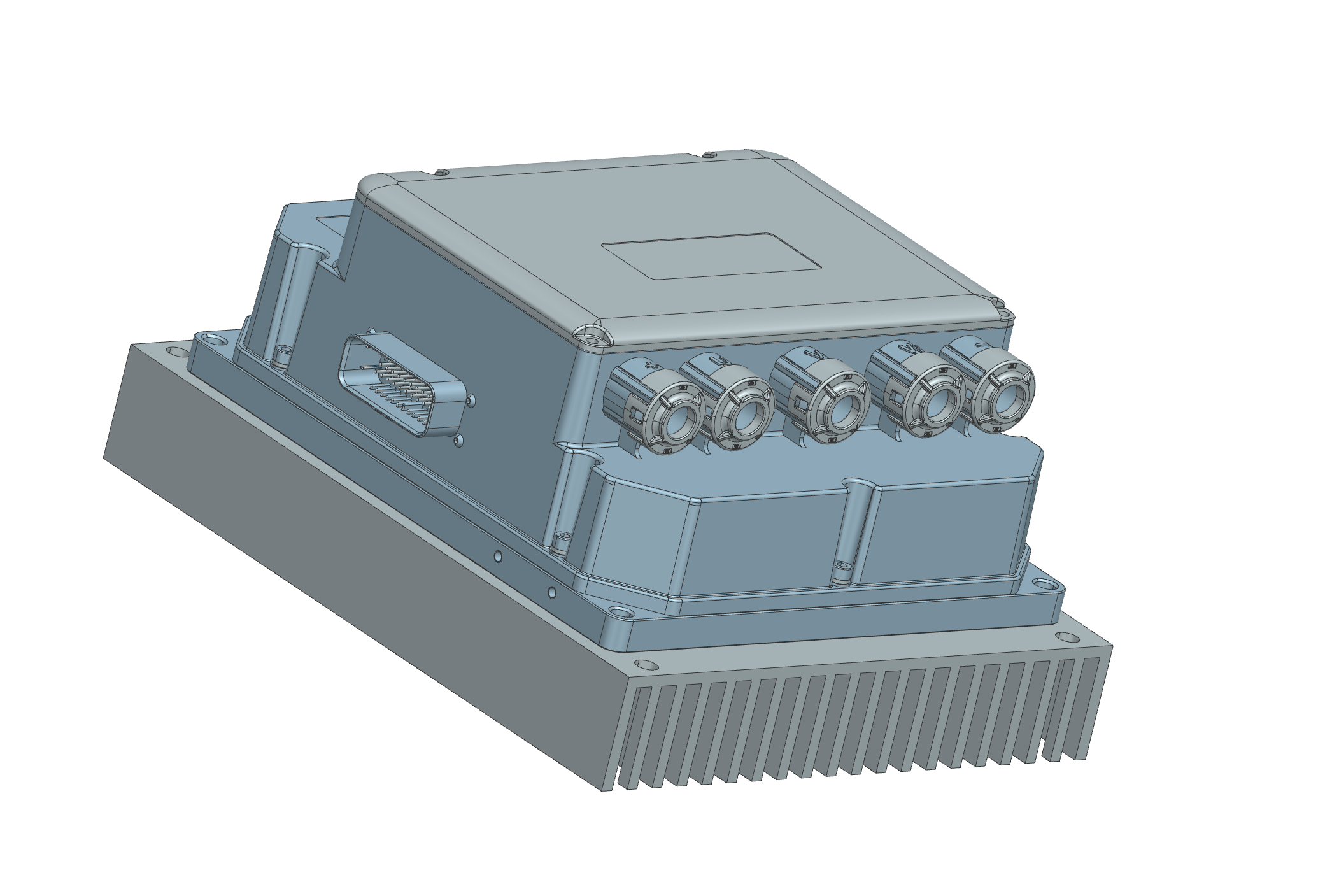

In this system the controller max current is 660A. Our customer has successfully integrated this motor into an ATV with a 4WD solution, and the results have been outstanding! The motor delivers impressive power and torque, providing exceptional off-road performance and smooth driving dynamics. Whether tackling rough terrains or navigating challenging trails, the 4WD setup ensures optimal traction and stability, making it an ideal choice for adventurous riders. The customer is extremely pleased with the motor’s responsiveness, durability, and overall driving experience, which has significantly enhanced the ATV’s performance. We’re proud to be part of this project and look forward to supporting more customers in their off-road electrification journeys.
