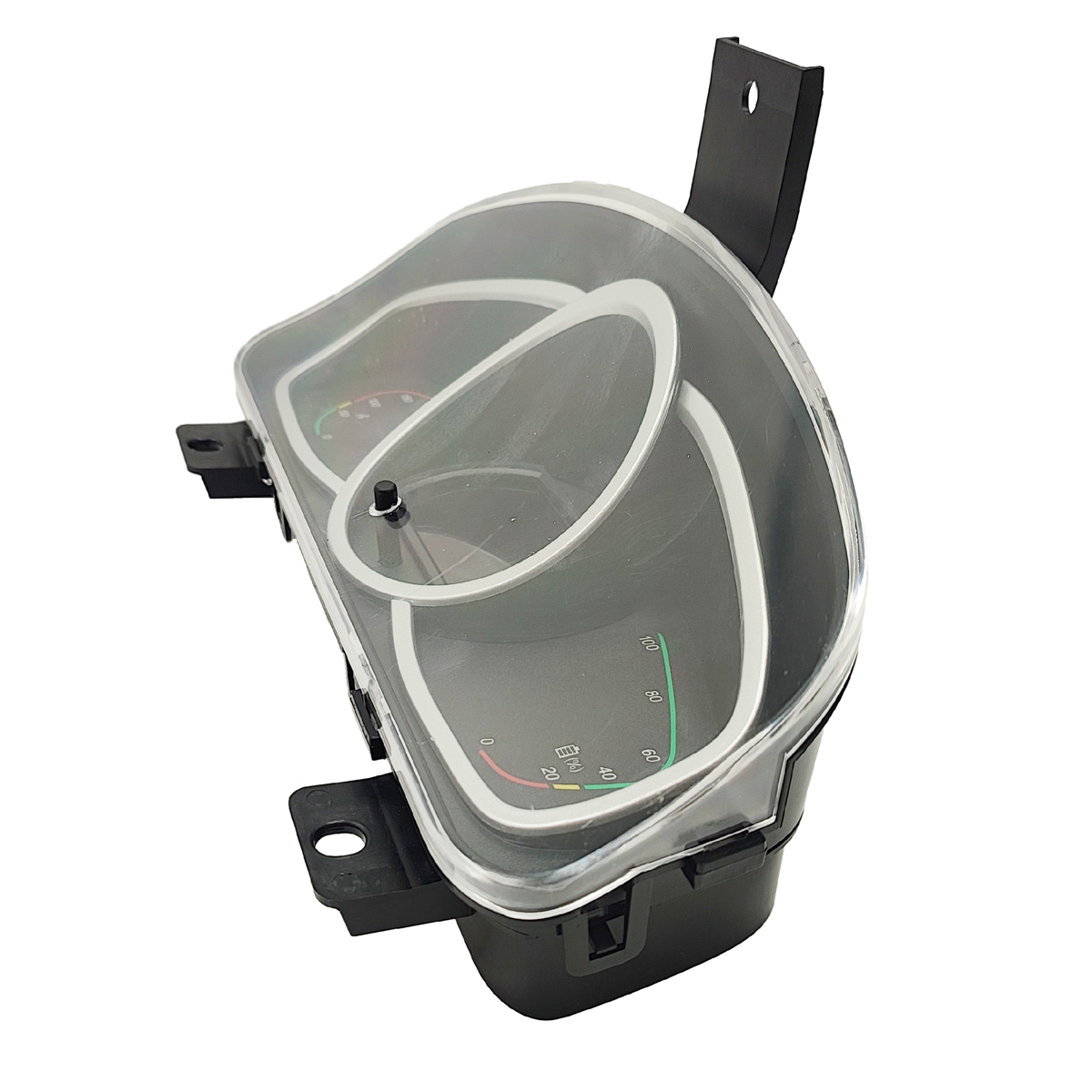

CMVTE Car Dashboard Display E-620 Instrument Cluster

Introducing the cutting-edge E620 Electric Car Dashboard – a comprehensive driving companion designed toelevate your electric vehicle’s interior. Featuring a crisp digital display, this car with digital dashboard includes an accurate speedometer, ampere meter, and coulombmeter for detailed monitoring of your vehicle’s performance. Enhanced with a buzzer alarm function for critical alerts, and powered by a reliable CAN signal input from themotor controller, the E620 the smart upgrade for any discerning driver.

Speedometer

1. Measuring speed range: 0~99km/h;
2. Mileage display mode: Segment code LCD;
3. Mileage range: The cumulative for (0~999999) km, minimum display unit: 1km; subtotal for (0.0~999.9) km, minimum display unit: 0.1km;
4. The reset button can clear the subtotal, cannot clear the total.
5. The input signal is CAN signal from the motor controller.

Ampere meter

1. Measuring current range: 0~300A;
2. Current display mode: LED Light string display;
3. The input signal is CAN signal from the motor controller.

Coulombmeter

1. Measuring power range: 0~100%;
2. LED Light string display;
3. The input signal is CAN signal from the motor controller.

Buzzer alarm function (12V peaked buzzer is adopted)

Controller failure(except undervoltage indication)alarm mode:Each call is five sounds (the interval is 1s), and the call is repeated for 5s, and the alarm is given in turn. The alarm does not stop until the fault is removed. Pull up the hand brake speed (speed is greater than 2km/h); Every 0.55s non-stop alarm, until release the handbrake to stop the alarm. When the car door is opened and the speed is greater than 5km/h, the buzzer will alarm once (twice continuously) and then alarm again every three seconds. When the speed is greater than 10km/h, the alarm will continue to alarm.
