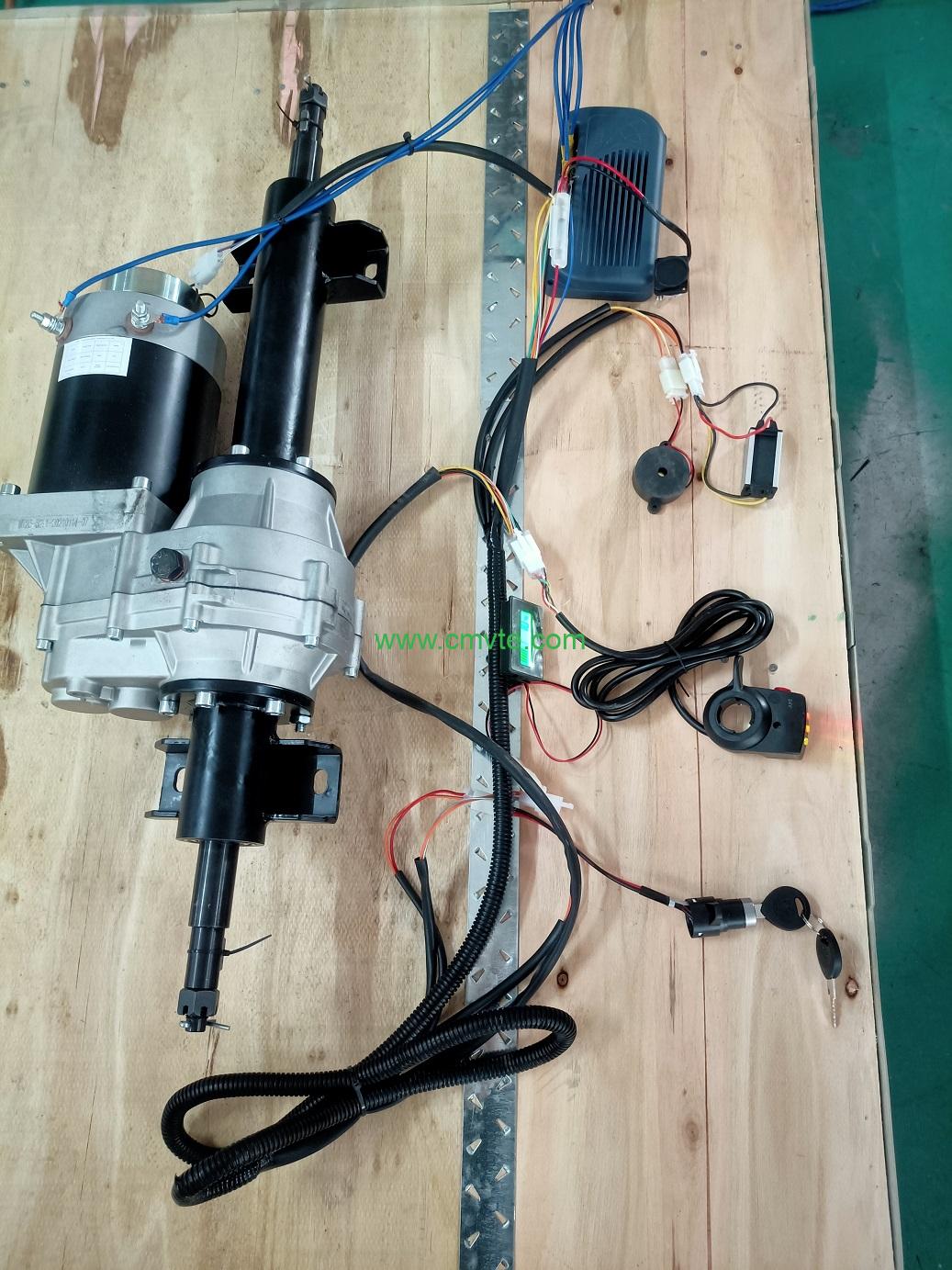

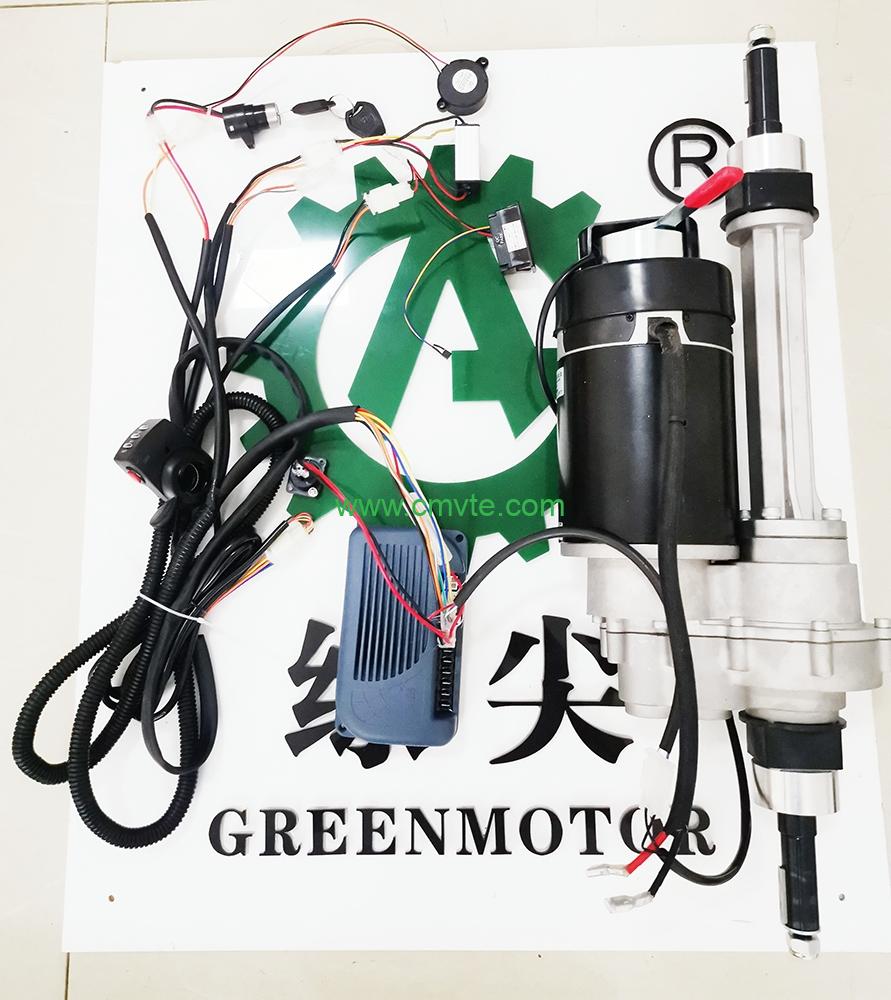

This is a complete drive train solution, for multiple usages, like golf rider, golf trolley, golf buggy, tractor, warehouse trolley, cleaning machine and vehicle, sweeper, floor scrubber , wheelchair, mobility scooters …..
Green Motor Tech provide you customized drive train for different applications, we flexibly adjust the motor power, gear ratio, axle length etc accordingly per your projects/vehicles demands.

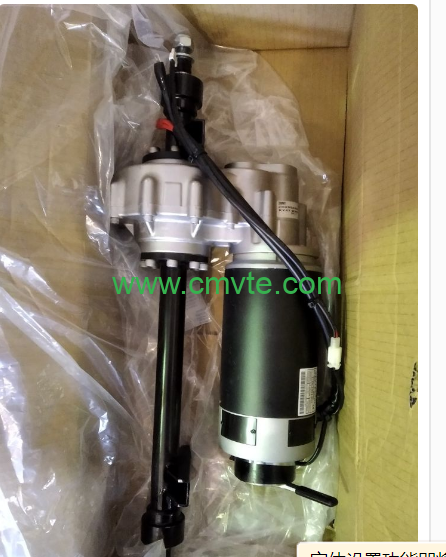

The motor power is 1200W, DC type with brush, 24V voltage . Installed to a transaxle , with EM brake.
Transaxle/axle length can be adjusted for cases.
Curtis controller 24V 110A DC.
Battery indicator.
DC-DC converter to drop voltage from DC 24V to 12V.
Accelerator you can choose,: Handle throttle, folk-lift handle, thumb switch, gas pedal etc.
Battery we can prepare you lead acid or lithium battery.

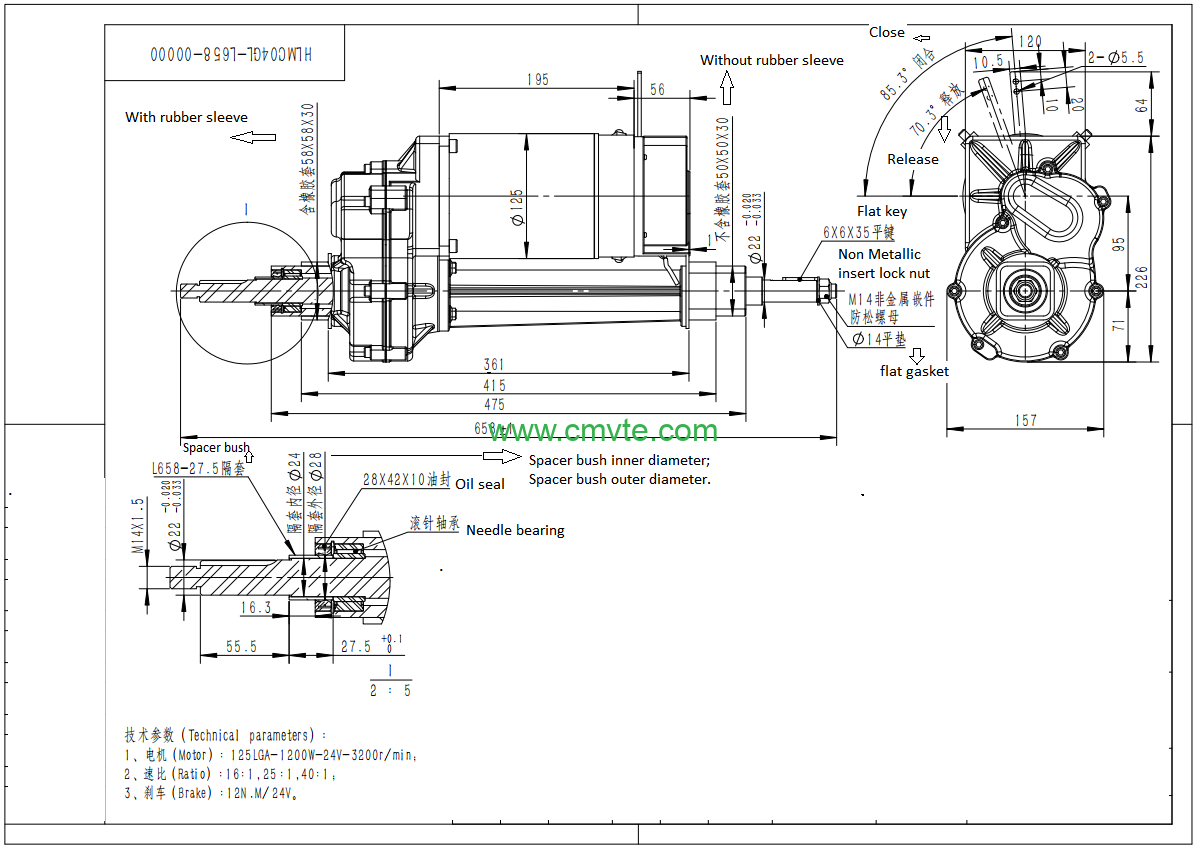

Description : Transaxle
Operating Voltage : 24VDC
Output Power : 1200W
Motor Speed : 4000RPM or 3200 RPM.
Gear Ratio : 16:1, 25:1, 40:1.
Sound Level : 65dB
Brake Torque 12N.m
