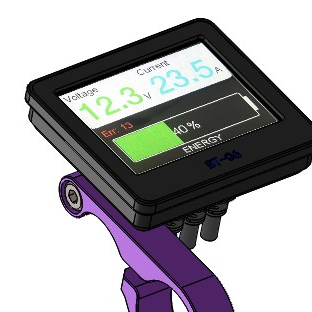

As an advanced, intelligent, and digital front-end mobile unit for the power grid, this instrument can be applied in various fields such as electric vehicles, forklifts, distribution automation, and energy management systems. It meets customer agreements, wiring methods, and custom display content, making it easy to use and adaptable to different on-site requirements.
Operating Environment
Working Temperature: -20℃ to +70℃
Protection Level: IP65
Working Humidity: 20% to 90% RH
Wiring Definitions
Red: +12V~36V
Yellow: 485-A / CAN HIGH
Blue: 485-B / CAN LOW
Black: GND
Use buttons to switch LCD screen display content
※ Protocol customization supported
Power Consumption: 12V/40mA
Real-Time Information
Display Content:
SOC (State of Charge) display, total voltage, current, runtime display, fault code display;
(Content protocol can be customized)
