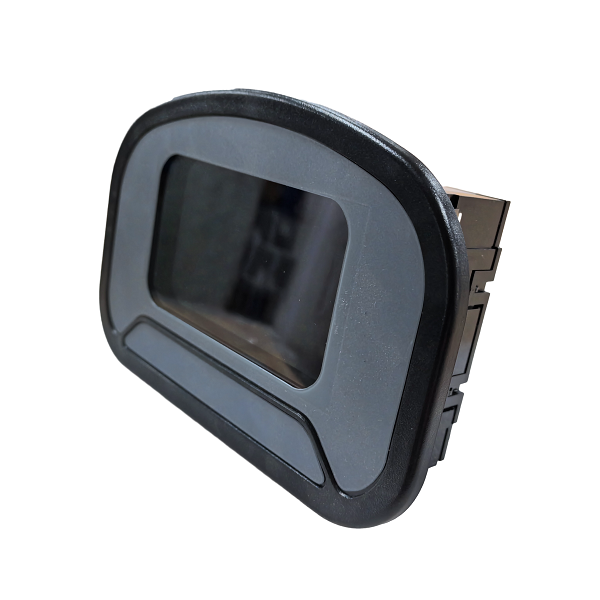

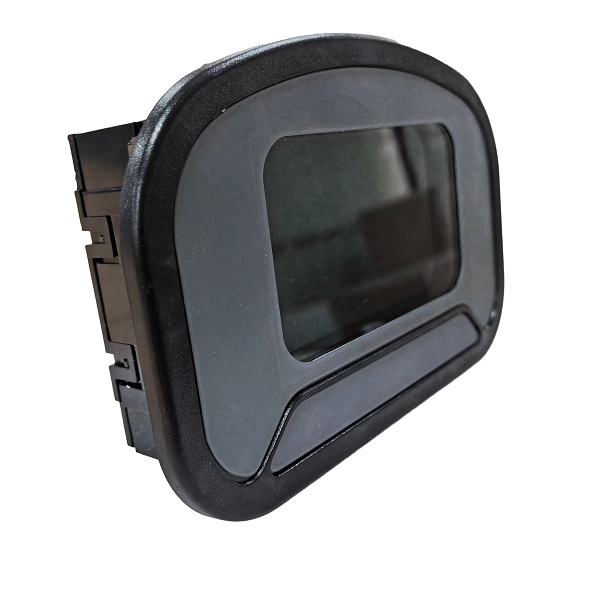

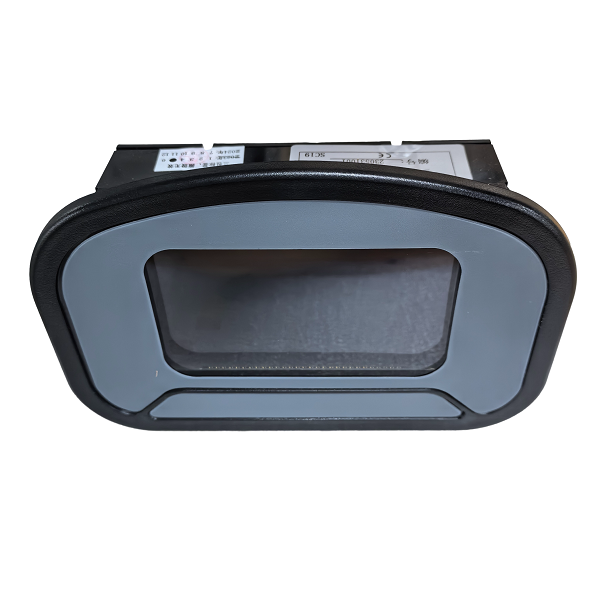

Experience the FY00 series, a state-of-the-art screen dashboard for electric cars with customizable parameters, refining the tech-savvy driver’s journey.
Main Functionality
The customer can modify four parameters: voltage, tir diameter, pulse count, and speed ratio. Please refer to the “Parameter Adjustment Manual for Combination Instrument” for specific operations.
Detailed Parameters
- Voltage meter
Range: 0-90V, voltage fluctuation range is less than 1V, with an error of ±0.5v.
- Battery Display
The battery level is represented by 8 graphical bars, while the numerical display shows the actual percentage value. When the battery level drops to a low level, the first bar from the right side will flash. During startup, the real-time voltage is checked. If the battery is fully charged, all 8 bars will be displayed. Otherwise, the display will show the last known battery level from the previous shutdown.
- Speed Display
Range: 0-99km/h
The error range is within ±0.5km/h. The speed display can be customized to show percentage values. The button can be used to switch between metric and imperial units.
- Mileage Display
The mileage value is calculated based on the speed and can be saved. The button can be used to switch between metric and imperial units.
