GMT 12V 10.1-inch Smart Multimedia TFT Instrument Cluster for Electric Vehicle

CMVTE’s smart instrument system features a high-brightness 10.1-inch TFT display with capacitive touch control. It has the functionality for vehicle instrument data collection, diagnosis, indication, settings, as well as multimedia entertainment functions, including AM/FM radio, MP5 video playback, MP3 audio playback, Bluetooth calling, Bluetooth music, and other media entertainment functions. Additionally, it supports driving assistance features such as reverse camera display and reverse radar distance measurement. The audio can be output to external speakers through a pre-amp or directly drive 4 channels of 25W speakers via a local amplifier.

SKU: CA-X101A-2313 Category:
Share:

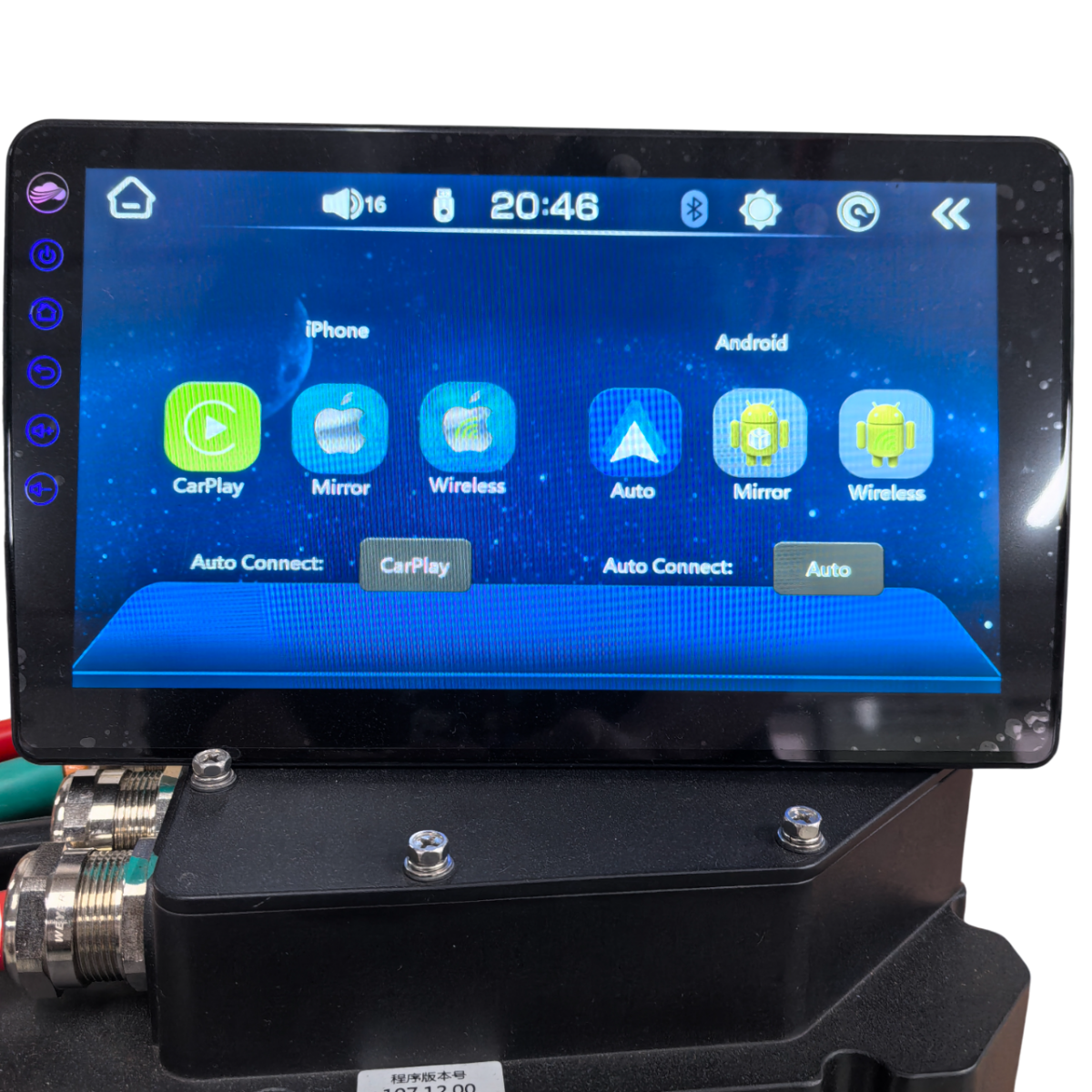

The CMVTE 10.1-inch Smart Multimedia TFT Display is a high-performance instrument designed for modern vehicles. Featuring a crisp, vibrant touchscreen interface, it offers easy access to key vehicle data and multimedia functions.



Screen Specifications: 10.1-inch IPS Full View (1024*600), Brightness 1000 Lux

Power Supply Range: 9.5~16V, Nominal voltage: 12V

Power Consumption: 1A (rated current), 10A (maximum current)

Static Current: ≤30mA

Audio Amplifier: 25W*4

Operating Temperature: -30 ~ + 75℃(c)

Storage Temperature: Excluding TFT screen, screen temperature range: -20°C to +70°C

Humidity: <=98% (at 45℃), 65±5% (rated)

Waterproof and Dustproof Rating: IP66

Main Unit Dimensions: 252*146*60mm

Main Unit Weight: 1100g

Weight 1.1 kg
Dimensions 25.2 × 14.6 × 6 cm
