Capable of 10,000 mating cycles, while charging up to 80 A (at 250 VAC), and at 500 A (1000 VDC), these charging inlets are designed specifically for the rigorous requirements of industrial and commercial vehicles. This means larger cable sizes than what’s seen in the Automotive market – up to 120mm² DC / PE 25 mm² / AC 16 mm².

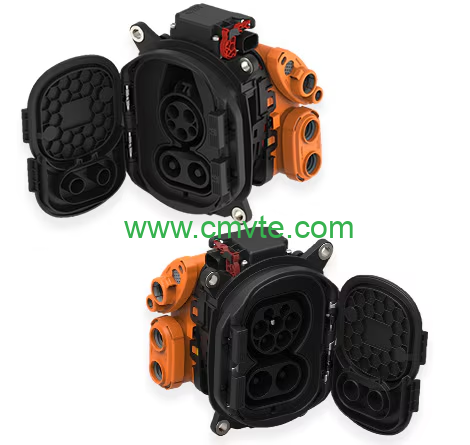

Features of European Standard DC Charging Socket
-
The direct pluggable dust cover is made of TPU material, combining hardness and flexibility.
-
Power terminals are silver-plated, resulting in low temperature rise and high stability.
-
Features a unique drainage structure and a monolithic plastic housing design, which reduces the plug-gun mating gap and enhances locking reliability.
-
Tool-less design for simple assembly.
-
High-sensitivity temperature sensor ensures precise and reliable monitoring.
Rated Current: DC: 80A/125A/150A/200A/250A/300A/400A (selectable); AC: 32A three-phase.
Compatible Cable Cross-Section: 16mm² / 35mm² / 50mm² / 70mm² / 95mm² / 120mm²
Electronic Lock: 12V / 24V optional
Compliance: Meets TUV/CE certification requirements.
| rated current | DC+/DC-:80A、125A、150A、200A、250A、300A、400A；
L1/L2/L3/N：32A； PP/CP：2A |
| adaptable cable | 80A/16mm² insulation outer diameter.: Φ8.0±0.2
125A/35mm² insulation outer diameter.: Φ11±0.2 150A/50mm² insulation outer diameter.: Φ13±0.2 200A/70mm² insulation outer diameter.: Φ15±0.2 250A/95mm² insulation outer diameter.: Φ17.3±0.3 300A/95mm² insulation outer diameter.: Φ17.3±0.3 400A/120mm² insulation outer diameter.: Φ19±0.3 |
| rated voltage | DC+/DC-:1000V DC;
L1/L2/L3/N:480V AC; PP/CP 30V DC |
| Dielectric strength | 3000V AC / 1min. (DC + DC- PE) |
| key lock | 12V / 24V to choose |
| insulation resistance | ≥ 100mΩ 1000V DC (DC + / DC- / PE) |
| mechanical life | 10,000 times |
| using environment temperature | -30℃~50℃ |
| IP grade | IP44(match set) |
| terminals | |
| material | Copper alloy |
| surface treatment | silver-plated |
| insulation | |
| material | thermoplastic plastic |
| color | black |
| seal piece | |
| material | silicone rubber |
