*Technical specifications: 30kW 336V PMSM Liquid-cooling System
Power system
Motor/electric engine parameters: 32kW rated, 60KW peak power. rated voltage 336V, rated rpm 3396 rpm, peak 9000 rpm, rated torque: 90NM, peak 220NM. IP67, weight 36KG. Insulation grade: H, duty: S9. The motor and controller is two in one.
Controller parameters: Rated Voltage: 336V, working voltage range: 250-420V DC. Peak power output voltage range: 290-410V DC. rated output current 115Ams, max output current 300 Ams. Efficiency> 95%. IP67. CAN protocol communication.

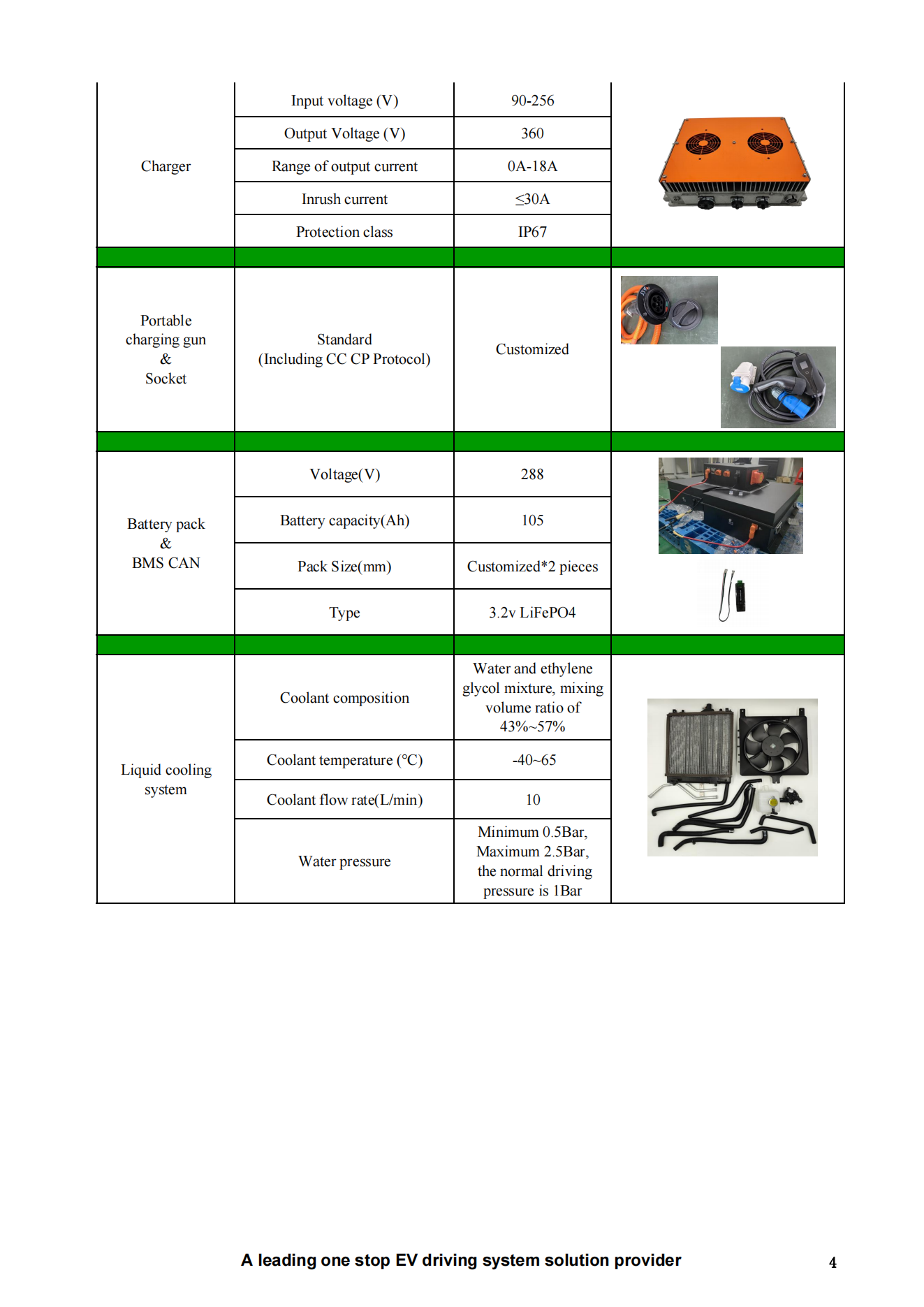

Battery Rated Capacity:288V105Ah/30kwh, dimensions: 1002*798*240 and 820*599*200MM, two boxes. One is under the VW GOLF MK4 chassis, one in the rear cabin.
Dashboard meter: 12V.
gas pedal, 12V, 6 cores.
DC-DC converter, 336V-12V, 1200W. To drop voltage from 336V to 12V.
OBC charger, input 220-230V, 6.6KW. Or 110V input 3.3 KW. Charge through CAN BUS.

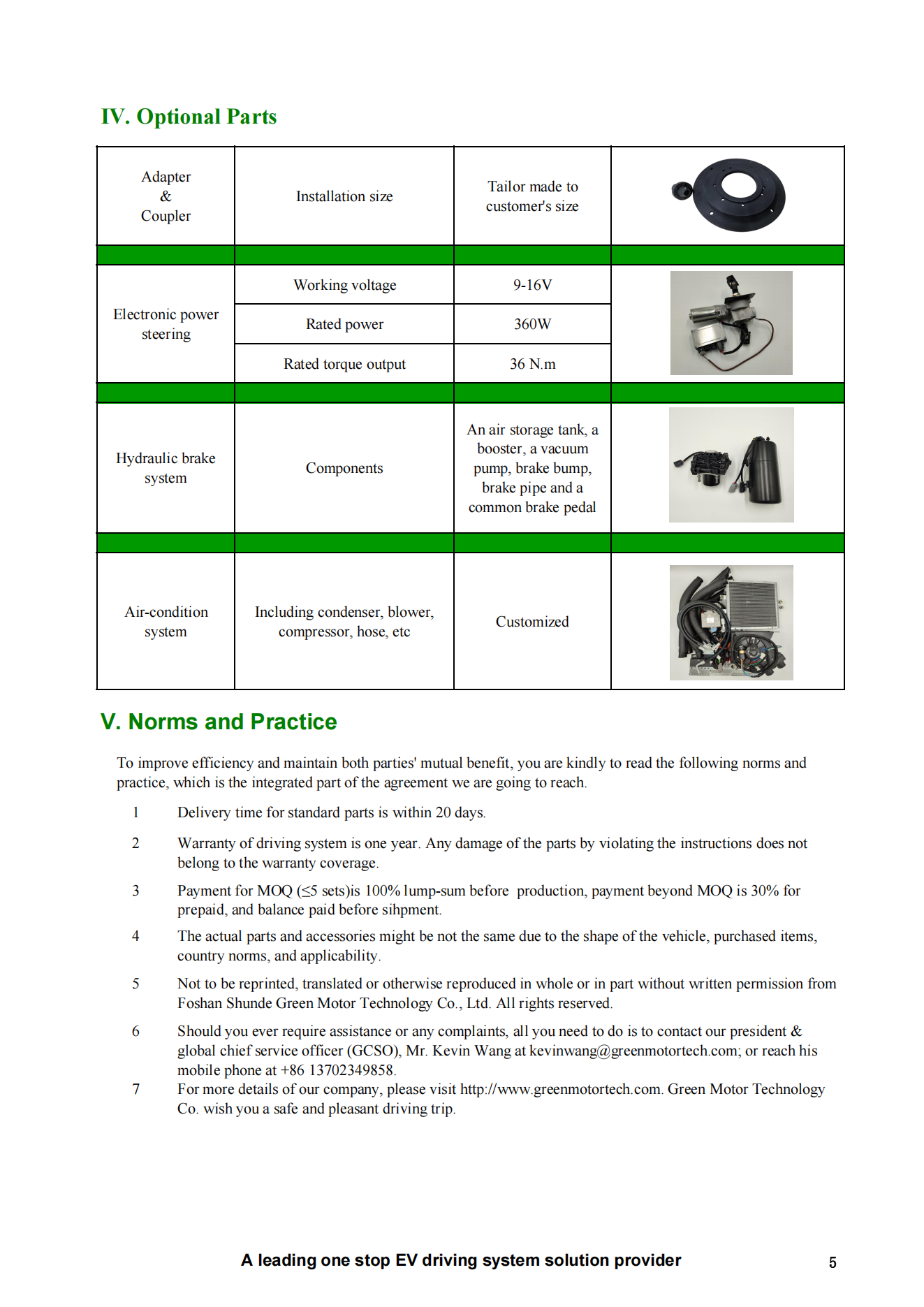

EHPS: electric hydraulic power steering, to make steering easier.
Vaccum brake pump, to make original brake system work.
Compressor, optional part, to make original AC air conditioner work.
More details, please contact sales: [email protected], whatsapp: +86 181 2358 9096.
