The Suzuki Carry (スズキ・キャリー) is a series of micro commercial vehicles/vans first introduced by Suzuki in 1961. After multiple generations of development, it has become a globally popular model thanks to its compact size, fuel efficiency, and high practicality, particularly in Japan, Southeast Asia, and Europe.
Key Features
Dimensions: With a length of 3.4-3.8 meters and wheelbase of approximately 2 meters, its small turning radius makes it ideal for narrow streets and dense urban environments.
Powertrain:
Early models were equipped with 0.8L-1.3L four-cylinder gasoline engines (such as the F6A and turbocharged K6A versions), with diesel engines available in some markets.
The latest models (e.g., DA64T/DA17W) feature a 1.5L engine (K15B) paired with either 5MT or 4AT transmission, balancing power and fuel economy (fuel consumption around 6-7L/100km).
Drivetrain: Rear-wheel drive (early models) or four-wheel drive (4WD versions), with high ground clearance for improved off-road capability.
Cargo Capacity: Payload of 500-800kg, with foldable/removable rear seats providing 2-3m³ of cargo space.
As a highly versatile micro commercial vehicle, the Suzuki Carry offers exceptional potential for customization. At Green Motor Tech, we provide complete professional modification kits to transform your Carry into the ultimate practical or lifestyle vehicle.
Parts Included in the Suzuki Carry Conversion Kit
- Motor
- AC Electric Motor Controller
- DC to DC Converter
- Car Dashboard Display
- Lithium Battery Charger for Electric Vehicles
- 12V vacuum pump booster
- 15kw/20kw motor shaft coupling & transmission adapter plate
- LeFePO4battery cell PACK
How we choose a suitable power of motor?—Normally we will consider original fuel engine power, torque,rotation speed, front or rear drive, cooling type…..
Just take Autin Mini Copper 1964 for reference: Horsepower: 76hp/57kw Maximum torque: 107Nm@5900rpm Drive wheels: FWD Transmission gears: 4 speed manual

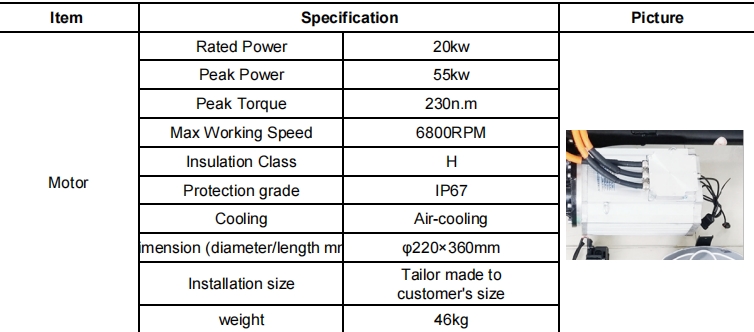

We recommend 144v rated 20kw/max 55kw AC induction motor, comes with max speed 6800RPM and max torque 230N.m., which is suitable to replace Mini Copper original engine. Customer can keep original 4 speed manual gearbox to get similar performance as fuel car as before.

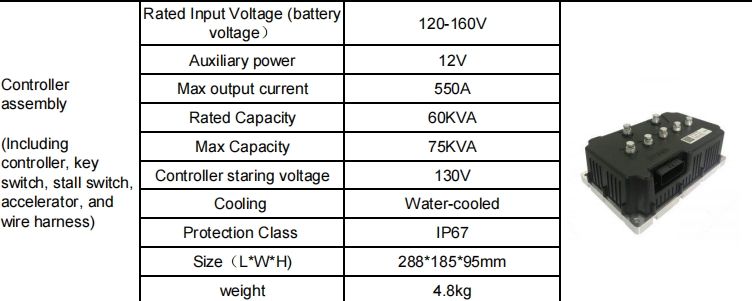

In an oil-to-electricity kit, the motor controller plays a crucial role in BMW Mini Copper conversion : Motor speed and torque control. The motor controller regulates the speed and torque of the electric motor. It does this by adjusting the voltage and current supplied to the motor windings.
Please be noted the system wire harness, gas pedal, gear stall switch switch are included in this controller link, we provide system wire diagram for each components so you will easily know system connection.
Unleash the full potential of BMW Mini Copper with our state-of-the-art 3.3kW 144V On-Board Air-Cooled Battery Charger. Designed for the modern-day EV, this compact yet powerful charger provides a notable 20A output for BMW Mini Copper, streamlining the charging process with impressive efficiency and reliability.
Engineered for Excellence:
Our charger is equipped with cutting-edge air-cooling technology that ensures optimal thermal management, maintaining the ideal operating temperature to deliver consistent charging performance while prolonging the lifespan of your battery system.
Intelligent Charging Solution:
Featuring an advanced control algorithm, our onboard charger maximizes energy conversion rates, reduces charging times, and adapts to varying voltage requirements, making it the smart choice for a wide range of electric vehicles.
Seamless Integration:
The sleek, lightweight design allows for seamless integration into your vehicle’s architecture, eliminating the need for bulky external equipment and preserving the aesthetics and aerodynamics of your EV.
Safety and Durability:
Built with robust components and adhering to stringent safety standards, our charger guarantees a safe charging experience with built-in protections against over-voltage, under-voltage, over-temperature, and short circuits.
Trust in the 3.3kW 144V On-Board Air-Cooled Battery Charger for a superior charging experience that keeps your BMW Mini Copper running smoothly, ensuring you stay ahead of the curve in performance and sustainability
Technical Indicators
Input voltage Range: 85~265Vac
Input current: < 15A @220Vac
Maximum output voltage:140%Un
Total current harmonic content: 5% @220Vac input, full power output
Conversion efficiency: ≥93% @ rated input full power output
Protection grade: IP66
Audible noise: ≤40dB
Vibration resistance:
According to “GB/T 2423.10” Environmental testing of electrical and electronic products – special bead requirements for part ii – standard design
Working environment temperature: -25℃~55℃
Storage environment temperature: -40℃~85℃
Certificate: CE certificate
In conventional fuel Suzuki Carry, the vacuum assisted brake pump uses the vacuum generated by the engine intake manifold to provide power.
In the process of changing from oil to electricity, the electric power system is changed from a fuel engine to an electric drive system, but the brake system still needs help to ensure that the driver can easily press the brake pedal. The vacuum assisted brake pump can help BMW Mini Copper maintain this assisted function.
Compatible with the original braking system
Oil to electric conversion kits usually want to use as much of the braking system components of the original vehicle as possible. As an important part of the original brake system, the vacuum booster brake pump for BMW Mini Copper can be well compatible with brake pipe, brake caliper and other components.
Lithium batteries are the core power components of electric Suzuki carry.
Compared with traditional fuel engines, lithium batteries can provide a quieter and smoother power output for BMW Mini Copper . This is because the operation characteristics of the motor are not like the vibration and noise in the combustion and mechanical transmission process of the internal combustion engine, making the driving experience of BMW Mini Copper more comfortable during the driving process.
The PACK SIZE IS :810*385*355MM
We use EVE brand cells, the one of the best in China. Automobile grade BMS with CAN BUS in the pack.
If you have other special dimensions request, you can tell us and discuss how to make it.
G20kw 144V kit is a suitable proposal for customers who converted Suzuki Carry. We also can provide economic version such as AC induction 15KW rated/30kw peak air cool motor, or stronger version PMSM liquid cool 25KW rated/45KW peak power.
Considering the limited space of BMW Mini Classic, the motor power can not be more than 30KW rated, because the system voltage will be more than 250V, then battery pack will be too big to be installed inside the car.
Except BMW MINI CLASSIC, our company also make many other conversion kits from 1kw upto 350KW, used for cars, pickup, van, buses, trucks etc.
We welcome you talk with our sales persons for further communication!BMW Mini Copper
Successful Conversion Cases We've Delivered for Our Clients：
This case is from a customer in Egypt, who used 20KW 144V AC motor made by our company. The coupler and adapter made by himself, his car is Suzuki Carry. This successful conversion bring hims confidence to start conversion business and attracts many potential customers.
Here we attach a test video as below:
Questions About Suzuki Carry Conversions
Yes, we provide all electronic parts for conversion. We also provide wire diagram system, each part user manual, so you will have no obstacles for installation and connection of the system.
Yes, we provide motor spline coupler and adapter plate to install motor to original transmisison. But the original transmission’s clutch need to get removed. If you want to keep clutch, you need modify the spline coupler to clutch a bit. Because we do not have car in hand, so we bought a old transmission without clutch to make the coupler and adapter kit.
We provide two years for battery, and one year warranty for other parts. We only use top grade quality products. If any parts failure from manufacturing issues, we provide repair parts for replacement.
If we have stocks ready to go, the lead time is one weeek after order confirmed. if we have no stocks, lead time might be 4 weeks after order confirmed.
After you have discussed with sales manager all details of the order, he or she will make proforma invoice with all details and bank accounts for payment, normally payment is through bank to bank T/T. Other payment ways are also flexible to accept after discussion.
We only use top brand of cells in China, like EVE, like Gotion etc, most of the case we use EVE brand pure new and A grade cells to make pack. And in our battery pack we surely use real automobile grade BMS, not simple protection board.
We care about reputation more than our customers!
We are real manufacturer, not sales trade office/company, we started our motor production from 1995 in China. In conversion we now have more than 10 year experiencee. In the whole drive systems, we do not produce all parts, but motor we make, controller we provide CAN BUS and technical requests to our partner, same as lithium battery pack and wire hanress of the system, the design and CAN BUS are from us. other accessories like gas peda, meter etc we get from reliable partners.
Except motor and drive train solution, we also owns our own low speed electric vehicle assembly factory, its website/brand is www.gmtlsv.com
In short, we are EV expert with decades experience in China!
Yes, our key electronic components are with CE certificate for Europe markets, so at the moment, we ship to Europe like France, UK, Germany, Italy, Sweden, Belgium, Turkey etc.
We also have ISO9001 quality manage certificate.
For our EV products, we also have WMI （World Manufacturer Identifier） certificate, each vehilce has its VIN number.
To some particular countries, they have requests in import or tax reduces policy such as for Africa countries and Middle East, COC or SABER might needed for import. For some countries, certificate of origin: FORM A, FORM E etc are requested. We all have experience to make for customers.
Yes, of course, our engineers who can speak English directly, video talk/email/Whatsapp they can communicate and serve customers without obstacles.
No matter before-sales or after sales, we all request in time response 24 hours and 7 days as long as we see the requests.
For necessary project, we can also send engineers to customers’ company for guide or training.
We also welcome customers to send engineers to us for onsite learning and training!
Yes, no problem, we support that. We hope customers can do longterm business so customization of his logo is OK
