1.2KW DC to DC Converter for Electric Vehicles – 200V-450V to 12V/24V

Original price was: $450.00.Current price is: $400.00.

DC to DC converters are electronic devices that convert direct current (DC) from one voltage level to another. They are essential components in many electronic systems, providing the necessary voltage conversion to power various devices.

SKU: RD1P2360 Category:

Rated output power: 1200W

Max output power and lasting time: 1400W @ 6 min

Rated output voltage: 14V

Voltage regulation accuracy: ±140mV

Efficiency: >92%

Input voltage range: 200V-450V

Low/high voltage protection: set per battery capacity

Noise:< 50dB

Working temperature: -40~65℃

IP grade : IP66

Cooling way: air cool

Protection: over voltage protection , low voltage protection, over temperature protection, short circuit protection, reverse connect protection, equilibrium potential and ground protection, power-off protection

Control logic: DC DC adopts high-level enable control, with a baud rate of 250kbps, and the CAN bus circuit has no terminal resistance. Set the default output for power on.

Weight 3 kg

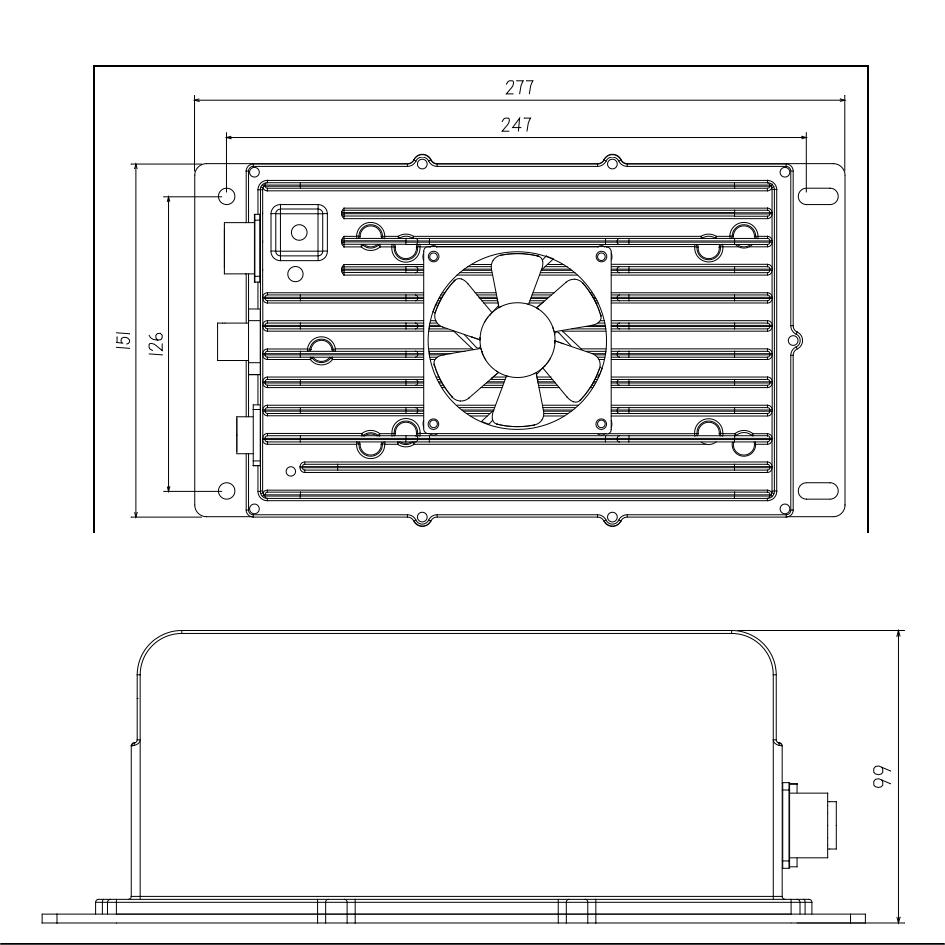

Dimensions 30 × 20 × 20 cm
