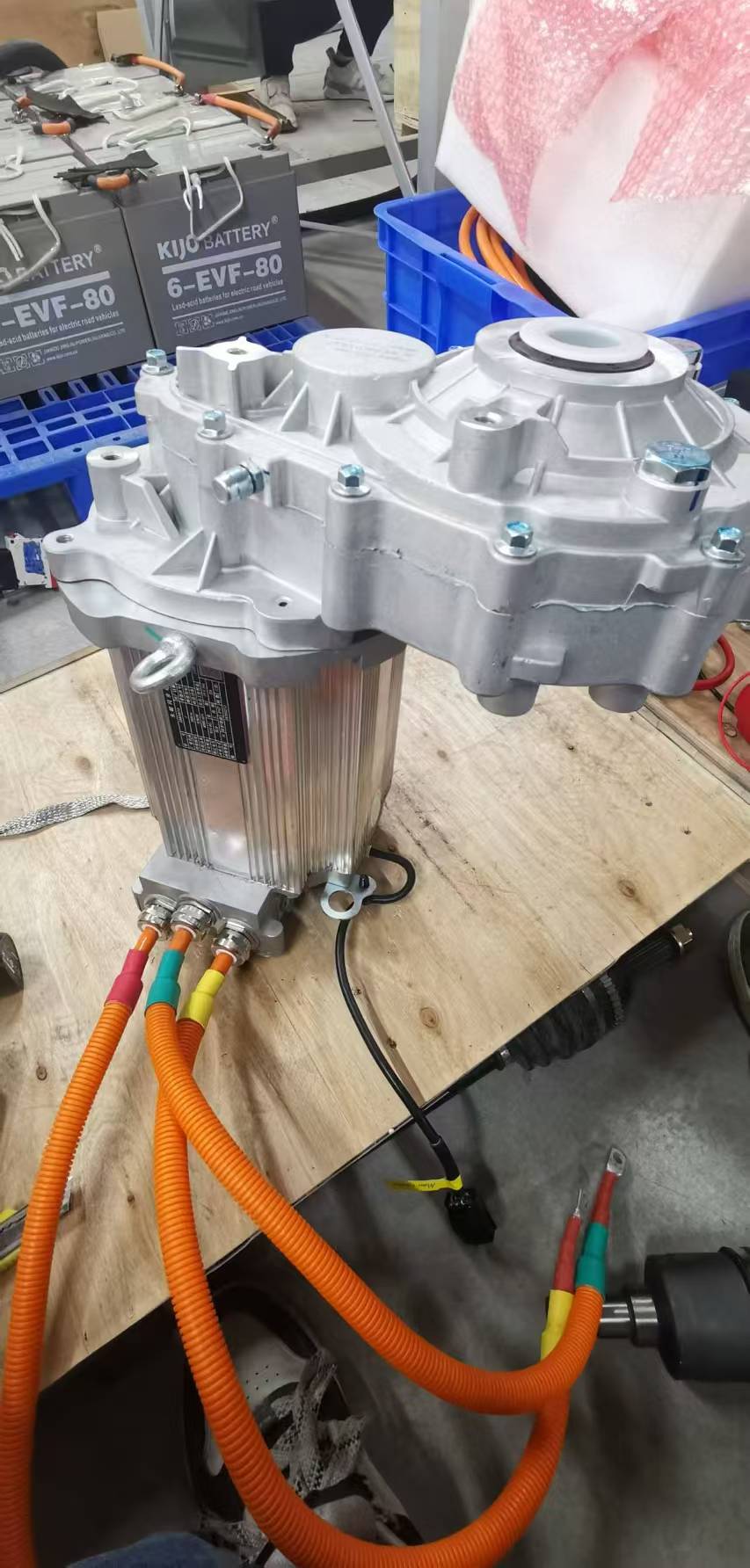

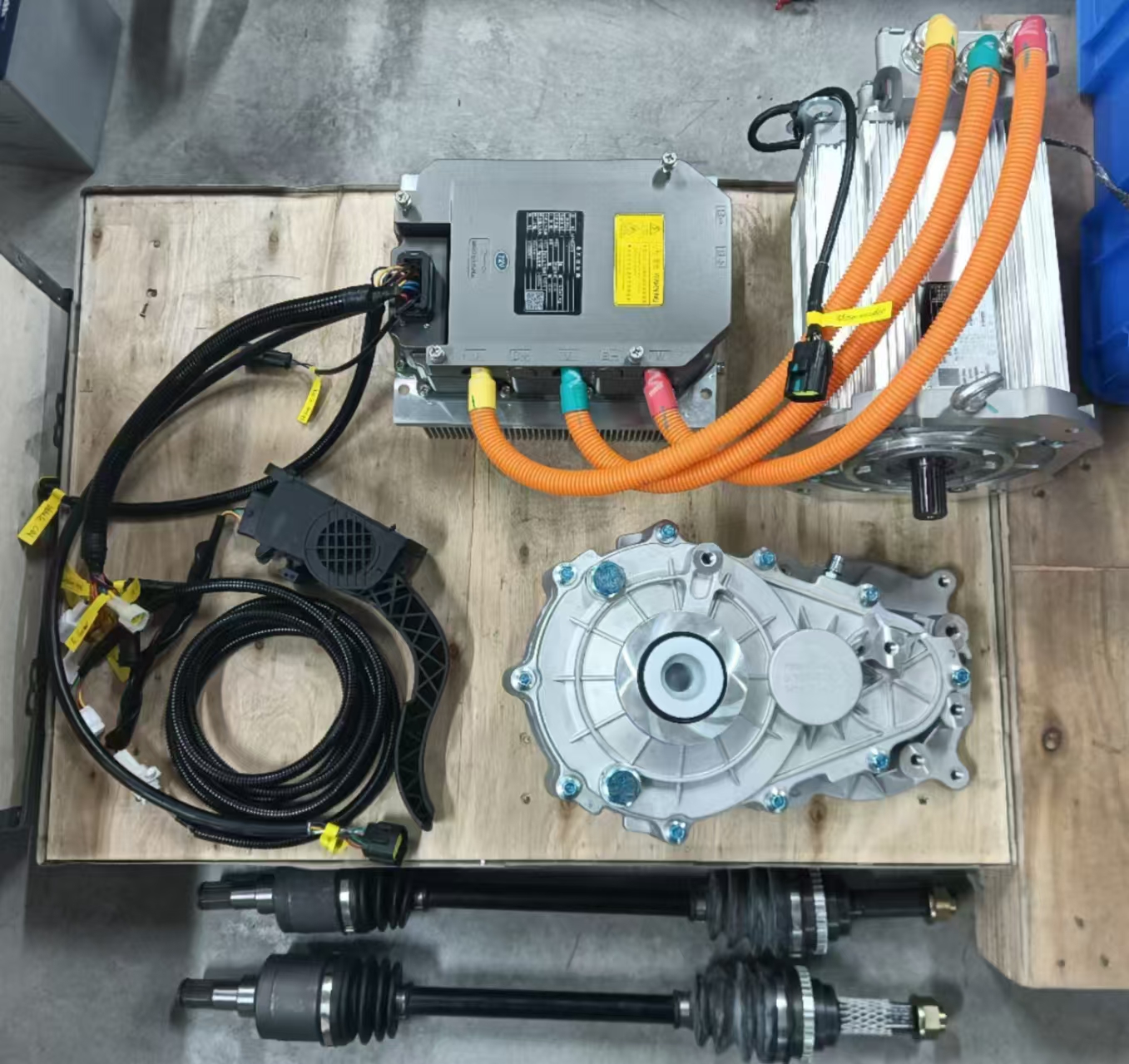

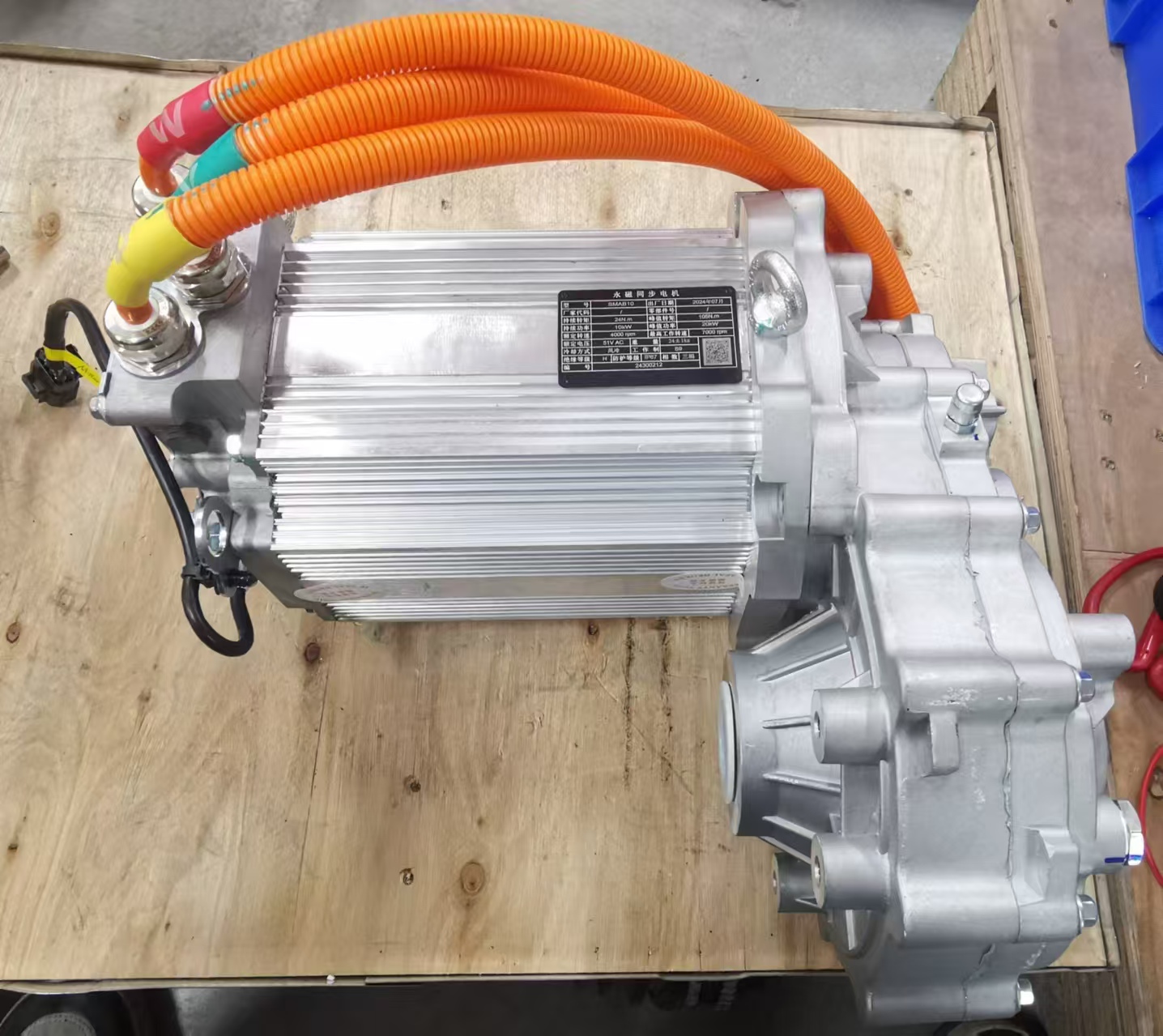

This conversion kit of 72v 10kw includes motor, controller, wire harness, gear selector, dashboard,DC-DC converter, gearbox+two half shafts(or you can choose to use rear axle), lithium battery, charger, suitable for making new light truck or sedans, sightseeing bus, ATV, UTV etc. or EV conversion.
Rated power 10kw
Peak power 20kw
Battery voltage 72Vdc
Rated speed 4000RPM
Max. speed 7000RPM
Rated torque 24N.m
Max.torque 105 N.m
Ambient temperature -40℃~55℃
Cooling mode Air cooling
Protection grade IP67
Insulation grade H
Duty S9
Size 170mm×170mm×260mm
Net weight ≤ 24±0.5kg
Packing Wooden box
below are the drawings.
01.01.0001.178_SMAB10-16-WXT18_2408B 外形图(1) - EN01.08.0004.087_MMCA20-WXT02-FLJ_2405A 控制器外形图 - EN22齿-23齿半轴 - ENFG1T07-1700001W(通用) - EN
