Battery Materials List

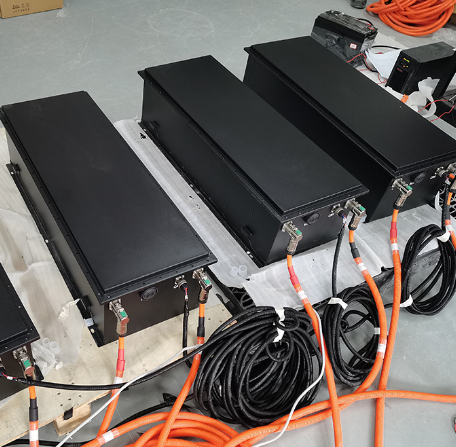

Battery pack： 168S1P537.6V105AH
Sampling unit module： TKB-BMS-1818-BMU54S
Power connector socket： TL 00X-201-10 M8 positive pole
Power connector socket： TL 00Y-201-10 M8 negative pole
Communication connector socket： XT08X-P8/gray
Repair switch plug：  CYMMSD-P-400A
Repair switch Socket： CYMMSD-S
Main control unit module： TKB-BMS-1818-BCU
Input+power connector socket： TL 00X-201-10 M8 positive pole
Input power connector socket： TL 00Y-201-10 M8 negative pole
Output+power connector socket： TL 00U-201-10 M8
Output power connector socket： TL 00V-201-10 M8
Slow charging connector socket： XLP 082A-60-6
DCDC connector socket： XL 082X -61-4
Air conditioning connector socket： XL 082Y-61-4
Air compressor connector socket： XL 082U-61-6
EHPS connector socket： XL 082Z-61-6
Battery communication socket： XT08X-P8/gray
Vehicle communication socket： XT08X-P21/gray
Charging fuse： RS308-HB-4G50A 750VDC
Discharge relay： NDZ3W-200/Liangxin
Charging relay： NDZ3W-50-DC24V/Hisense
Pre charging relay： NDZ3W-50-DC24V/Liangxin
Current sensor： WHK300
Repair switch plug： CYMMSD-P-400A
Repair switch socket： CYMMSD-S
Discharge positive plug： TL 28U-201-35
Discharge negative plug： TL 28V-201-35
Slow charging connector plug： XLP 182A-60-6
DCDC connector plug： XL 182X-61-4
Air conditioning connector plug： XL 182Y-61-4
Air compressor connector plug： XL 182U-61-6
EHPS connector plug： XL 182Z-61-6
Vehicle communication plug： XT18X-S21/gray

Dimensions

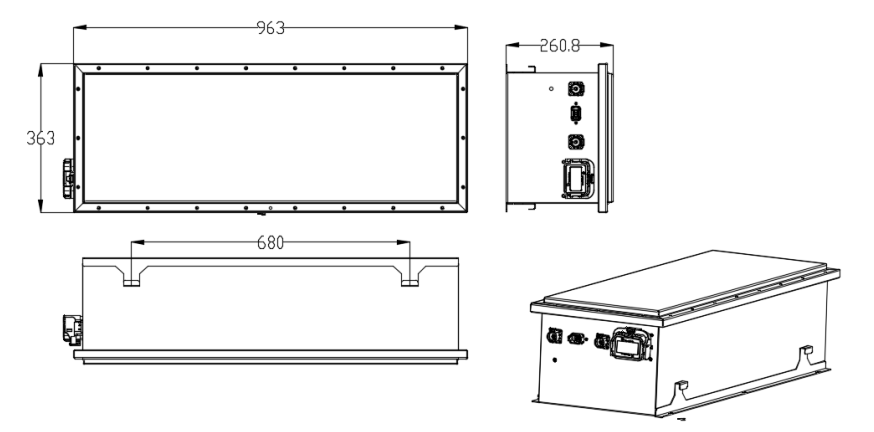

Single Battery Pack Dimensions

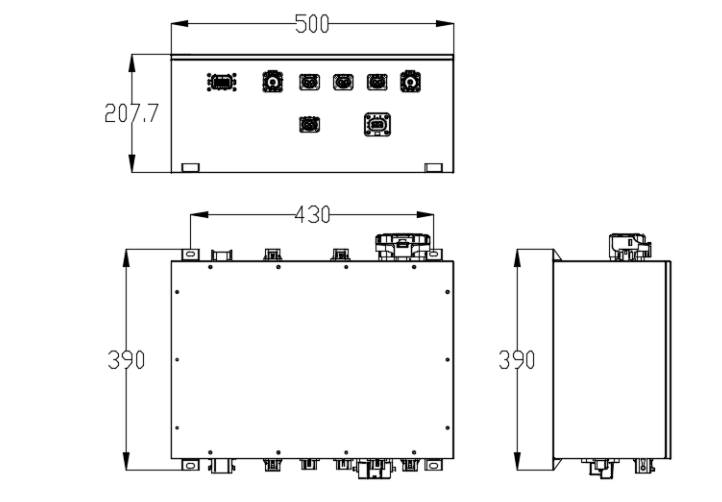

Controller Box Size

Basic Information for Battery Packs

Single Packs Parameters

Battery type: Lithium iron phosphate battery cell
Rated voltage: 3.2V
Rated capacity: 105Ah
Single cell voltage range: 2.5V~3.65V
Single battery weight: 1.68 ± 0.05kg
Working temperature for charging: 0~55 ℃
Discharge: -20~55 ℃

Whole Battery Packs Parameters

Rated voltage: 537.6V
Rated capacity: 105Ah
The working voltage range of the battery pack: 420V~613.2V
Total energy: 56.45 kWh
Continuous charging current: 15A
Peak charging current: 30A
Continuous discharge current: 105A
Peak discharge current: 210A
Environmental relative humidity: 25~85% RH
Cooling method: natural cooling
Environmental temperature: The battery system can operate normally in an external environmental temperature range of 0 ℃ to 45 ℃;
Charging temperature: When the internal ambient temperature of the battery pack is between 0 ℃ and 55 ℃, charging is acceptable;
Discharge temperature: When the internal ambient temperature of the battery pack is between -20 ℃ and 60 ℃, it can be discharged;
Full load operating temperature: When the internal ambient temperature of the battery pack is between 10 ℃ and 45 ℃, and the SOC is between 30% and 100%, the discharge power is not affected.
Factory insulation resistance test value (M Ω): ≥ 30
