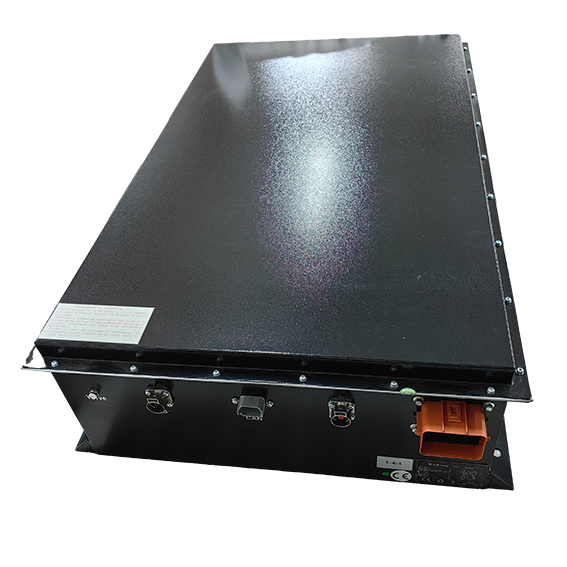

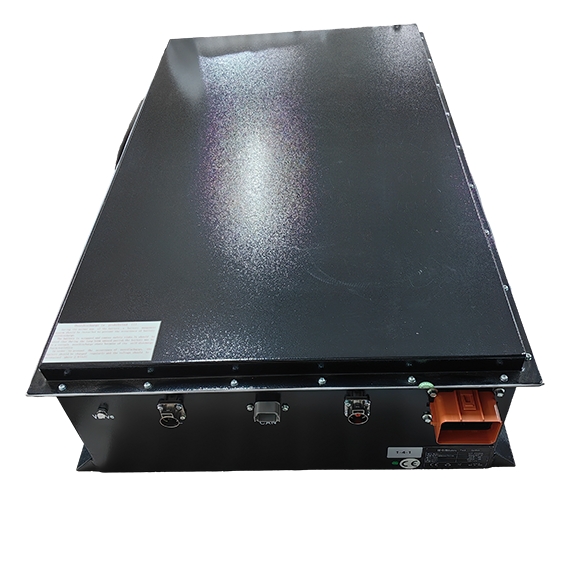

CMVTE Lithium battery cell LEP battery cell LeFePO4 battery cell PACK 96V105AH 10KWH

Original price was: $2,500.00.Current price is: $2,000.00.

Lithium iron phosphate: single nominal voltage 3.2V, voltage range 2.8~3.6V, and most of the electricity concentrated between 3.2~3.6V;It has the characteristics of safety, high stability, not easy to burn, high energy density, working temperature -20~65 degrees Celsius, good performance at high and low temperature.

SKU: LFP-96105 Category:

Lithium battery Voltage(V) :96V
Battery Capacity (Ah): 105AH
Size(mm): customized

HS code:   85072000

Lithium iron phosphate: single nominal voltage 3.2V, voltage range 2.8~3.6V, and most of the electricity concentrated between 3.2~3.6V;It has the characteristics of safety, high stability, not easy to burn, high energy density, working temperature -20~65 degrees Celsius, good performance at high and low temperature.
How to correctly choose charging machine: the output of the charger all contain battery voltage range, range of the lithium iron phosphate nominal voltage range is from 2.8 V to 3.6 V, so the battery voltage range of the application of batteries in series number by 2.8 and 3.6 respectively, such as 96 V 105 ah battery, the rated voltage of 96 V, the voltage range is 84 V ~ 108 V, so the matched charger should be slightly higher than the highest output voltage 108 V, so as to ensure the normal order of the batteries fully charged.

Internal CAN communication protocol .

With BMS management for the battery pack

Configurated the MSD Module for security protection and maintenance

Charging mode: fast and slow charging.



Green Motor Tech customizes battery packs with different requests ,we offer battery pack technology ranging from  low voltage 48-144V and high voltage 320-540V series.

Weight 115 kg
Dimensions 105 × 88 × 54 cm
