Electric propulsion is transforming the marine industry. Fishing boats run quieter. Sailboats cruise without diesel fumes. Tour boats eliminate the noise complaints that plague waterfront communities. CMVTE has completed electric boat conversions across multiple vessel types — here are three real examples with the specs and results.
Case 1: Fishing Boat — Quieter Waters, Lower Costs
Before: A 7-meter coastal fishing boat with a 30HP gasoline outboard. The owner was spending heavily on fuel, dealing with oil leaks, and receiving noise complaints from a nearby eco-tourism zone.
After: CMVTE replaced the gas outboard with a 10kW brushless permanent magnet electric motor paired with a 72V 150Ah LiFePO4 battery pack. The boat now runs for 4 hours at 6 knots cruising speed — enough for a full day's fishing. Charging is handled by a 3kW onboard AC charger, with optional solar top-up.
Results:
- Noise dropped from 85 dB to under 55 dB — quiet enough to fish at dawn near residential areas
- Zero emissions, zero oil leaks, zero fuel costs per trip
- Range: 30-40 km per charge depending on load and conditions
Battery: 48V 150Ah lithium pack. The owner reports saving roughly $200/month in fuel alone.
Case 2: Sailboat — Silent Cruising with Regeneration
Before: A 10-meter fiberglass sailboat with an aging 20HP diesel inboard. The engine vibrated through the hull, filled the cabin with exhaust smell, and required regular maintenance.

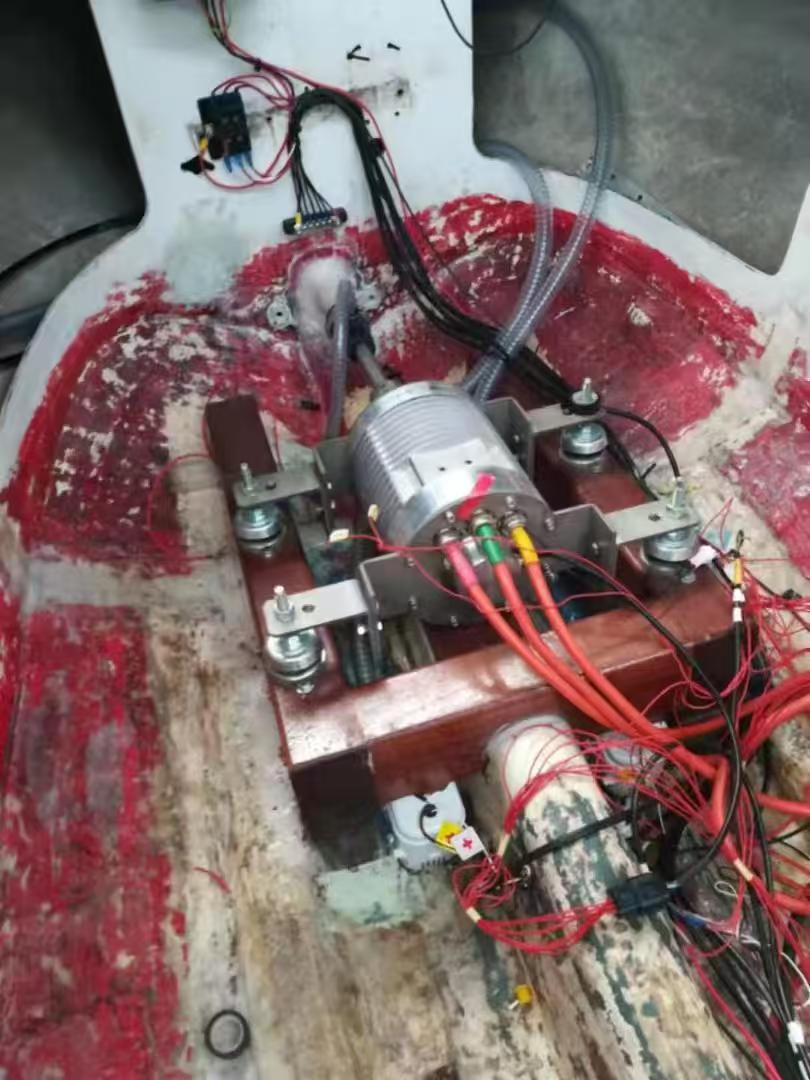

After: CMVTE installed a 15kW water-cooled inboard PMSM motor with a 96V 200Ah lithium battery bank mounted beneath the cabin floor. The system includes regenerative charging through the propeller while under sail.
Results:
- Silent motoring in and out of marinas — no exhaust, no vibration
- Regeneration adds range during sailing, extending total operating time
- CO₂ reduction: approximately 3.2 tons per year compared to diesel
- Essentially zero maintenance compared to the previous diesel
Case 3: Tour Boat — Greener Tourism, Better Business
Before: A 40-seat tour boat powered by twin gasoline engines. The operation ran daily tours in an eco-sensitive area, but engine noise and exhaust drew complaints from passengers and local residents.
After: CMVTE supplied a 50kW electric motor with a 336V smart BMS battery system. The boat's daily 200 km route is covered on a single charge, with solar charging supplementing overnight AC charging.
Results:
- Annual fuel savings: approximately $13,000 USD
- Passenger satisfaction scores improved 25% after the conversion
- The operator now markets the tour as zero-emission eco-tourism, commanding premium pricing
- Noise complaints eliminated entirely
Charging at Dock or on the Water
Every CMVTE marine system includes an onboard charger that works with standard shore power (110V-240V AC). A full charge takes 4-8 hours depending on battery size. For operators with solar capacity, CMVTE offers an integrated solar charge controller that tops up the battery during daylight hours — extending range for tour boats and fishing vessels that spend all day on the water. Regeneration is available for sailboat installations, with the propeller acting as a generator while under sail.
CMVTE Marine Drive Systems: Available Now
CMVTE offers electric drive systems from 3kW to 200kW for boats, covering everything from small dinghies to commercial passenger vessels. Motor options include PMSM outboard and inboard configurations, air-cooled and water-cooled. Battery packs are available in LFP (longest cycle life) and NMC (highest energy density) with voltages from 48V to 600V+. Every system includes a matched VCU, BMS, and charger — no component matching required.
Marine applications we have completed: fishing boats (7-12m), sailboat inboard replacements (8-15m), tour boats (20-50 passengers), small ferries, and utility/work boats. Each system is configured for the vessel's operating profile — range, speed, and typical daily run time.
Why Choose CMVTE for Your Boat Conversion?
Most electric boat solutions on the market are generic — a motor pulled from an industrial catalogue paired with a battery from a different supplier. CMVTE designs complete marine-electric systems: motor, controller, battery pack, BMS, charger, and wiring, all from a single manufacturer. Every component is tested together before shipment.
A US Parts Retailer Kit for a boat often requires the buyer to match an inboard motor to a separate controller, source a marine-grade battery separately, and figure out cooling and wiring alone. CMVTE delivers a ready-to-install system sized for your vessel's displacement, range requirements, and operating conditions.
With 130+ countries served and nearly 20 years of EV engineering from Dr. Kevin Wang's team, CMVTE has the marine experience to get your conversion right the first time.
Tell us your vessel type and size — we will recommend the right electric drive system
