Power Converter for Car Manufacturer china

Every modern vehicle—whether electric, hybrid, or combustion—relies on a stable low-voltage network. The 12V or 24V system powers lights, infotainment, ADAS, and engine control units. But where does this power come from in an EV? The answer is the DC-DC power converter.

For car manufacturers (OEMs) sourcing components in China, the choice of a power converter directly impacts vehicle reliability, cost, and time-to-market. CMVTE has emerged as a specialized power converter for car manufacturer China —offering automotive-grade designs, flexible integration, and scalable production.

What Is an Automotive Power Converter?

In traditional vehicles, the alternator charges the 12V battery. In an electric vehicle, there is no alternator. Instead, a high-voltage battery (400V or 800V) powers the traction motor, and a DC-DC converter steps down that high voltage to charge the low-voltage auxiliary battery and supply all 12V/24V loads.

Key functions of an automotive power converter:

• Voltage conversion: HV to LV (e.g., 800V → 14V or 28V)

• Bidirectional capability (optional): LV to HV for jump-starting or V2L

• Protection: Overvoltage, short circuit, thermal shutdown

• EMI filtering: To meet CISPR 25 automotive standards

Without a robust converter, the vehicle’s lights flicker, the infotainment reboots, and the BMS (battery management system) loses communication. For car manufacturers, this is not an option.

Why CMVTE Is the Right Power Converter Partner for Car Manufacturers in China

China is home to the world’s most dynamic automotive supply chain. But not every supplier understands automotive-grade quality. CMVTE bridges that gap with:

1. Designed for Automotive Environmental Standards

CMVTE power converters are built to withstand:

• Temperature range: -40°C to +105°C (ambient), with peak junction temps up to 125°C

• Vibration: ISO 16750-3 (random vibration for engine-mounted components)

• Ingress protection: IP67 for under-hood or under-floor mounting

• Humidity & salt spray: 95% RH non-condensing, 48h salt spray (ASTM B117)

These are not industrial or ITE converters repurposed for cars. CMVTE units are designed from the ground up for vehicle duty cycles.

2. High Efficiency and Low Quiescent Current

Modern EVs and hybrids demand efficiency even when parked. CMVTE converters achieve:

• Peak efficiency >94% (full load, nominal input)

• Standby quiescent current <1mA to preserve HV battery during long-term parking

• No-load input power <5W for energy-conscious applications

For electric buses and trucks that may sit idle over weekends, this prevents deep discharge of the HV pack.

3. Flexible Power Ratings and Outputs

Car manufacturers need different converters for different platforms. CMVTE offers a modular portfolio:

Dual-output models (e.g., 13.8V + 13.8V isolated) are available for redundant systems or split power distribution.

4. OEM-Ready Communication and Diagnostics

Modern vehicles are software-defined. CMVTE power converters integrate via:

• CAN 2.0B or CAN-FD (J1939 for commercial vehicles, or custom protocol)

• LIN bus for body control modules

• Digital enable & fault feedback (active-high/low configurable)

OEMs can read real-time parameters: input voltage, output voltage/current, internal temperature, and cumulative operating hours. This enables predictive maintenance and fleet telematics.

5. ISO/TS 16949 Quality Management

CMVTE operates under IATF 16949 (automotive quality management) and produces in ISO Class 7 clean rooms for power module assembly. Every unit undergoes:

• 100% burn-in test at 85°C for 2 hours

• Hi-pot isolation test (3000V AC for HV-LV isolation)

• Full-load transient test (10–90% load step within 1ms)

• ESD and EMC pre-compliance (CISPR 25 Class 3)

For car manufacturers, this means predictable quality and traceability from component lot to final assembly.

Applications Across Vehicle Segments

CMVTE power converters are already supplied to manufacturers producing:

• Passenger EVs (BEVs): NMC and LFP battery platforms (400V/800V)

• Hybrids (PHEVs & MHEVs): Where the converter must handle frequent engine starts and regenerative pulses

• Electric vans and light trucks: 3.5t to 7.5t GVWR

• Electric buses and coaches: 24V auxiliary systems for doors, lights, and air compressors

• Specialty vehicles: Garbage trucks, sweepers, airport ground support

Integration Support for Car Manufacturers

CMVTE does not simply ship a datasheet. The company provides engineering support for:

• Mechanical integration: CAD models (STEP, IGES) and thermal simulation data

• Electrical integration: Fuse coordination, cable lug sizing, contactor pre-charge logic

• Software integration: CAN database (DBC) files, sample code for MCU handshake

• EMC troubleshooting: Ferrite recommendations and grounding schemes

For manufacturers unfamiliar with HV-LV isolation requirements, CMVTE offers reference designs for the entire LV distribution box.

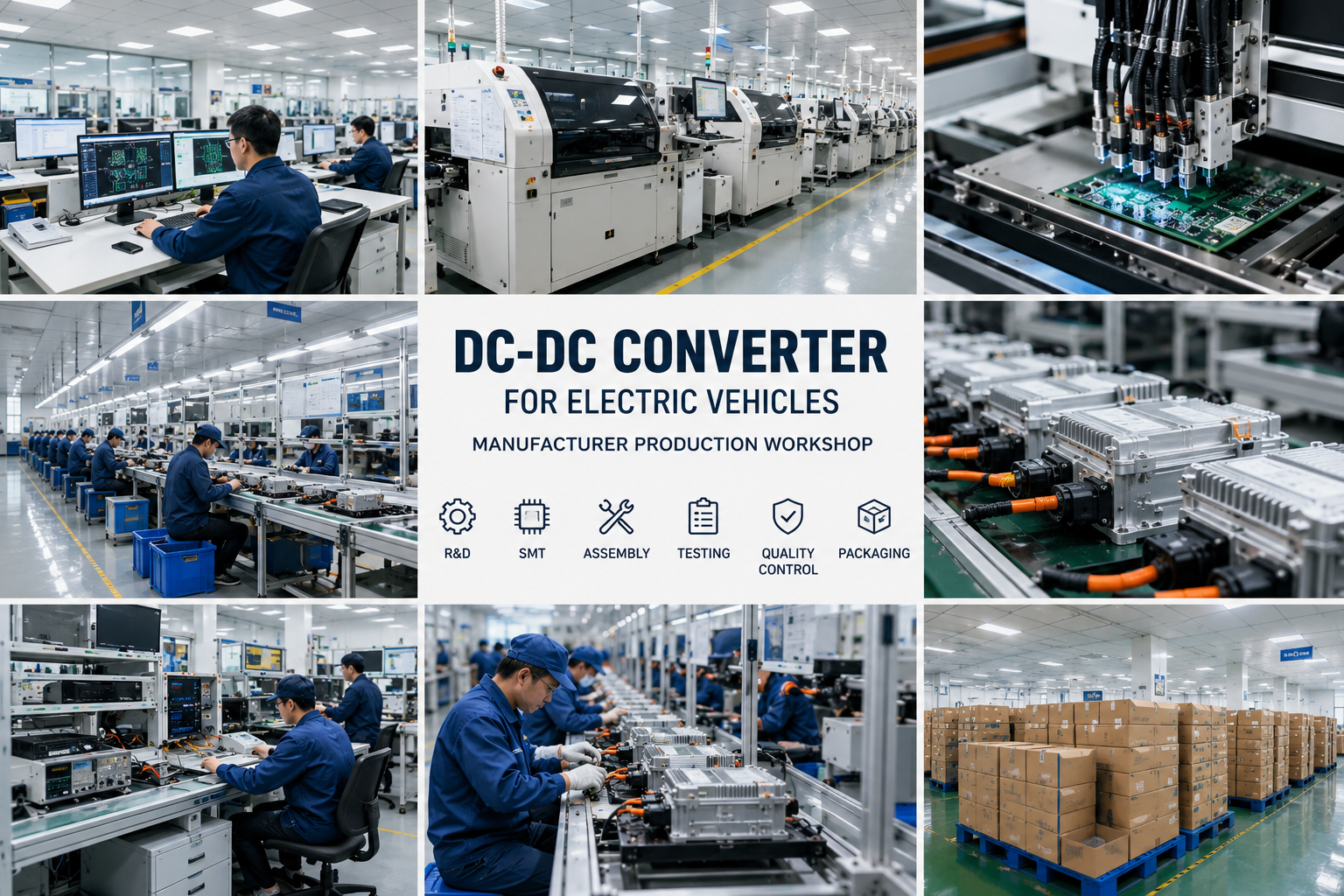

Production Scalability: From Prototype to Mass Production

Whether you are a startup building 200 pre-series vehicles or an established OEM planning 50,000 units per year, CMVTE scales with you:

• Prototype phase (1–50 units): Manual assembly with full test reports (4-week lead time)

• Pilot phase (51–500 units): Semi-automated line, individual test logs (3–4 weeks)

• Mass production (500+ units/month): Fully automated SMT and assembly, JIT delivery (12–15 weeks for tooling)

Why Choose a China-Based Power Converter Manufacturer?

Sourcing a power converter for car manufacturer China offers distinct advantages:

• Cost efficiency: Automotive-grade components at 30–40% lower cost than European or Japanese equivalents (without compromising quality)

• Supply chain speed: HV connectors, magnetic components, and PCBs are locally sourced, reducing lead times

• Engineering responsiveness: CMVTE’s R&D team (15+ years of automotive power experience) works in the same time zone as Asian OEMs

 CMVTE – Your Long-Term Power Conversion Partner

For car manufacturers, a power converter is not a commodity. It is a safety-critical component that affects vehicle range, reliability, and owner satisfaction. CMVTE combines automotive-grade engineering, flexible OEM support, and competitive China-based pricing.

Ready to qualify CMVTE for your next EV or hybrid platform?

Contact our automotive team for:

• Customized power converter specifications

• Sample units for bench and vehicle testing

• IATF 16949 quality documentation

• Volume production quotation
